Manufacturer: Ness Corporation

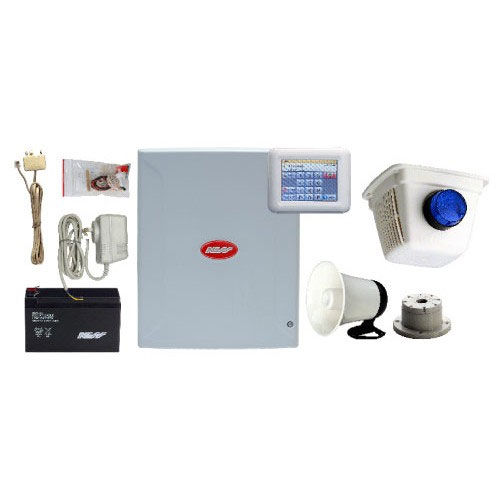

D8XD NAVIGATOR & NOISE KIT

SKU: K-6312

3.5" colour LCD Touch Screen
The easiest to read alarm keypad ever!

Voice alarms and voice prompts using a preset voice message library
Allows for professional Back to Base monitoring via Contact ID or 'self-monitoring' via intuitive voice alarm messages.

Superb contemporary design
The clean, crisp design adds elegance to any decor in the home or office.

Plain English event displays by name
Add your own text description text descriptions for your alarm zones. Choose from the built-in library or add your own.

Dealer details page
Never lose a business card again! Your installer can leave his contact details in your Navigator.

Advanced English Programming
Navigator makes everyday programming such as changing user codes or timers a breeze.

Touch Screen Age
Navigator is a true Price-Performance breakthrough offering touch screen technology for not much more than a traditional keypad.

Designed and Manufactured in Australia
Navigator is proudly a genuine Australian product - conceived, born and raised at our Seven Hills NSW manufacturing facility.

Navigator Touch Screen
DIMENSIONS (W - H - D)108 x 86 x 15 mm
DISPLAY TYPE3.5" Colour lCD
DISPLAY RESOLUTION320 x 240
TOUCH SCREENTouch sensitive surface
COMPATIBILITYD8X
OPERATION VOLTAGE12VDC supplied by the control panel
DATA2 wire proprietary Ness data bus
Navigator Control Panel D8X
BOX DIMENSIONS (W - H - D)235 x 300 x 90 mm
POWER INPUT17VAC or 20VDC
AUX POWER OUTPUT13.8v DC @ 800mA
QUIESCENT CURRENT DRAW80mA with 1 keypad
RECHARGEABLE BATTERY12 volt 7.0 Amp/hour Sealed lead Acid
BATTERY CHARGING CURRENT350mA maximum, current limited
DYNAMIC BATTERY TESTBackup battery is tested under load, hourly and on arming
FUSES2 Amp auto resetting  / Siren output & Reset output.
500mA auto resetting / 12 volt auxiliary outputs.
200 mA auto resetting / Strobe output
ZONE OUTPUTS8 zone inputs. 2 x 24hr tamper inputs
END OF LINE RESISTORChoice of 12 programmable values including N/C.
Default 2200 Ohms (2.2k)
MAXIMUM KEYPADS3 x Navigator Touch Keypads max.
INTEGRATED RADIO OPTIONSMulti-pin connector for the optional Ness Radio Interface. Supports up to 55 Radio keys . Up to 8 radio zones
SERIAL HEADERSerial data port for direct connect programming using NessCommsTM software. Also 2 way serial data
INTEGRATED ACCESS CONTROLMulti-pin connector the optional Weigand Interface. Supports up to 3 Ness proximity access card readers
SIREN OUTPUTOn board siren driver with timed output. Maximum 3 x 8 Ohm horn speakers
STROBE OUTPUT12v DC timed output. Maximum 2 x 1 Watt strobe lights
RESET OUTPUT12v DC timed output. Max. 3 x 12v piezo screamers
EQUIPMENT POWER OUTPUT13.8v DC output for powering detectors and other equipment. Maximum 500mA
AUX READERMulti-pin connector provides outputs Aux1, Aux2, Aux3, Aux4, 12v DC
