Manufacturer: Ness Corporation

NESS D8XD DELUXE PANEL WITH WHITE LCD+ KEYPAD

NESS D8XD DELUXE PANEL WITH WHITE LCD+ KEYPAD
SKU: K-6306B

Versatile 8 Zone Alarm System

Flexible 8 Zone control panel & PSTN Dialler. The Ness D8xD is the most versatile Ness 8 zone control panel ever!

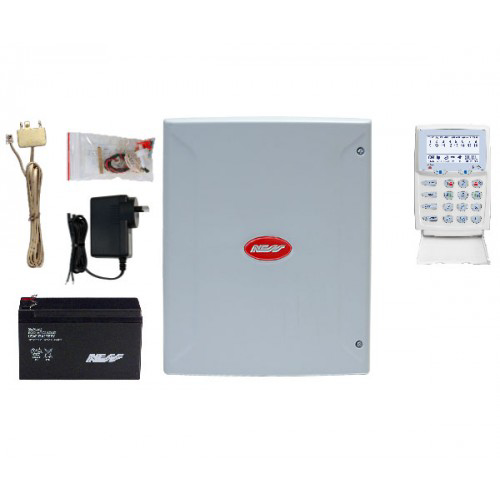

Supplied with White KPX+ LCD keypad, plug pack, battery, telephone lead, housing and manuals.



 Made In Australia Made In Australia by NESS

  • Architecturally designed premium keypad
  • Glossy glass-look fascia
  • High Contrast LCD icon display
  • White and Red LCD backlighting
  • Red LCD backlighting for alarm memory
  • Satin finish tactile buttons
  • Laser-etched graphics
  • Adjustable keypad beep volume
  • Adjustable LCD brightness
  • Adjustable blue keypad backlighting

Control Panel D8XD


BOX DIMENSIONS (W - H - D) 235 x 300 x 90 mm
POWER INPUT 17VAC or 20VDC
AUX POWER OUTPUT 13.8v DC @ 800mA
QUIESCENT CURRENT DRAW 80mA with 1 keypad
RECHARGEABLE BATTERY 12 volt 7.0 Amp/hour Sealed Lead Acid
BATTERY CHARGING CURRENT 350mA maximum, current limited
DYNAMIC BATTERY TEST Backup battery is tested under load, hourly and on arming
FUSES 2 Amp auto resetting /Siren output & Reset output.
500mA auto-resetting / 12 volt auxiliary outputs.
200 mA auto-resetting /Strobe output
ZONE OUTPUTS 8 zone inputs. 2 x 24hr tamper inputs
END OF LINE RESISTOR Choice of 12 programmable values including N/C.
Default 2200 Ohms (2.2k)
MAXIMUM KEYPADS 3.
INTEGRATED RADIO OPTIONS Multi-pin connector for the optional Ness Radio Interface. Supports up to 55 Radio keys . Up to 8 radio zones
SERIAL HEADER Serial data port for direct connect programming using NessCommsTM software. Also 2 way serial data
INTEGRATED ACCESS CONTROL Multi-pin connector the optional Weigand Interface. Supports up to 3 Ness proximity access card readers
SIREN OUTPUT Onboard siren driver with timed output. Maximum 3 x 8 Ohm horn speakers
STROBE OUTPUT 12v DC timed output. Maximum 2 x 1 Watt strobe lights
RESET OUTPUT 12v DC timed output. Max. 3 x 12v piezo screamers
EQUIPMENT POWER OUTPUT 13.8v DC output for powering detectors and other equipment. Maximum 500mA
AUX READER Multi-pin connector provides outputs Aux1, Aux2, Aux3, Aux4, 12v DC

Brochure





Versatile 8 Zone Alarm System

Flexible 8 Zone control panel & PSTN Dialler. The Ness D8xD is the most versatile Ness 8 zone control panel ever!

Supplied with White KPX+ LCD keypad, plug pack, battery, telephone lead, housing and manuals.



 Made In Australia Made In Australia by NESS
