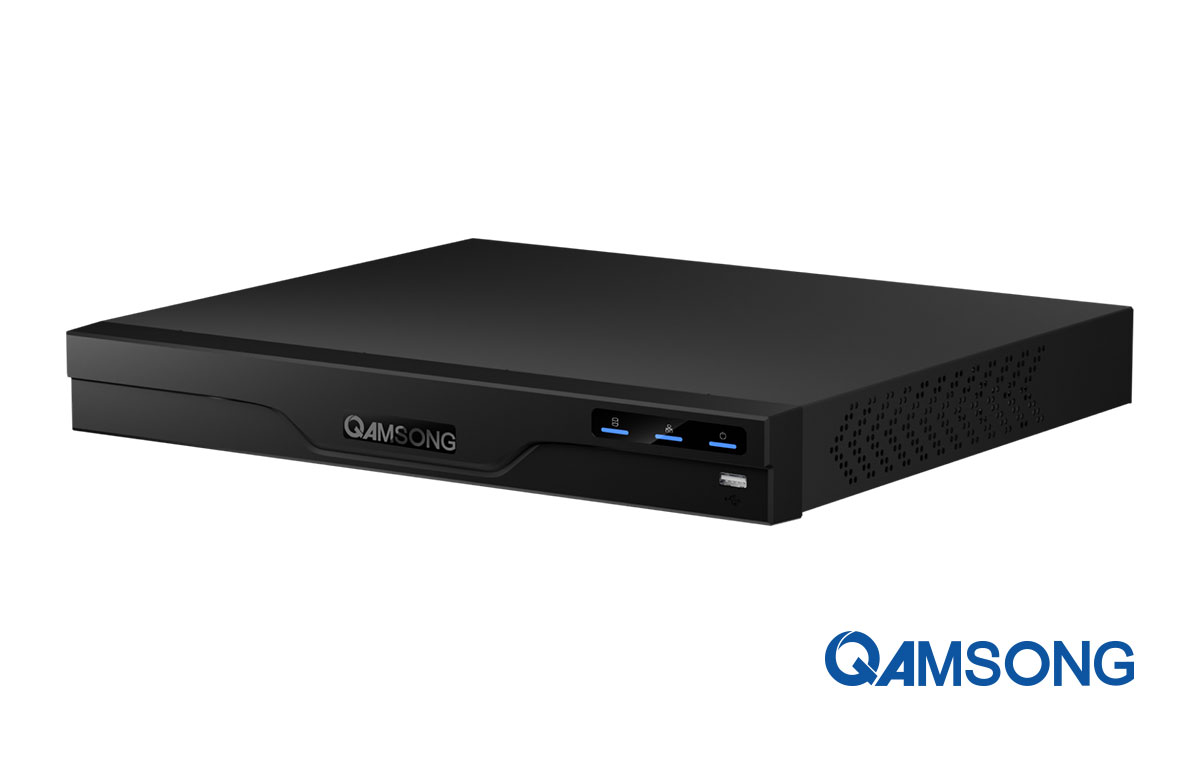

Qamsong NVR3216-16P-B 16ch NVR no HDD

16ch NVR, 16 PoE

PRE-ORDER NOW

SKU: 128-516

Overview

Channel No.	16 channels
Recording Resolution	16MP;12MP;8MP;6MP;5MP;4MP;3MP;1080p;960p;720p;D1;CIF
Incoming/Outgoing Bandwidth	256Mbps incoming, 256Mbps outgoing
Decoding Capability	AI disabled: 2×12MP@30fps; 4×8MP@30fps; 8×4MP@30fps; 16×1080p@30fps; AI enabled: 2×12MP@30fps; 4×6MP@30fps; 8×3MP@30fps; 14×1080p@30fps
Video Output	1 HDMI, 1 VGA Simultaneous： HDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720 VGA: 1920×1080, 1280×1024, 1280×720
Audio I/O	1/1
Video Compression	Smart H.265; H.265; Smart H.264; H.264
Storage Capacity	2 SATA port, Up to 12TB per disk, HDD sold separately
AI by Recorder	4-ch(SMD)
AI by Camera	16-ch(SMD, intrusion, tripwire, face capture)
Network	1×RJ-45 10/100/1000 Mbps Ethernet port
PoE Port	16 ports, 10/100 Mbps, IEEE 802.3 af/at
Alarm I/O	4/2
USB Port	2 (1 front USB 2.0 port, 1 rear USB 3.0 port)
RS232	Support
RS485	Support
Product Dimension	375mm×329.4mm×54mm(14.76"×12.97"×2.13")
Working Temperature/Humidity	-10°C ~ 55°C (14°F ~ 131°F), humidity, ≤95% RH (non-condensing)
Power Supply	100-240 VAC, 50-60HZ, 3.5 A
Power Consumption	<10W，without HDD

Qamsong products are available to trade customers only.
Resellers and distributors wishing to offer or promote Qamsong products should contact Ness Corporation to discuss authorisation and commercial arrangements. Product information, images and content published on this website may not be reproduced or republished without prior written permission from Ness Corporation.
