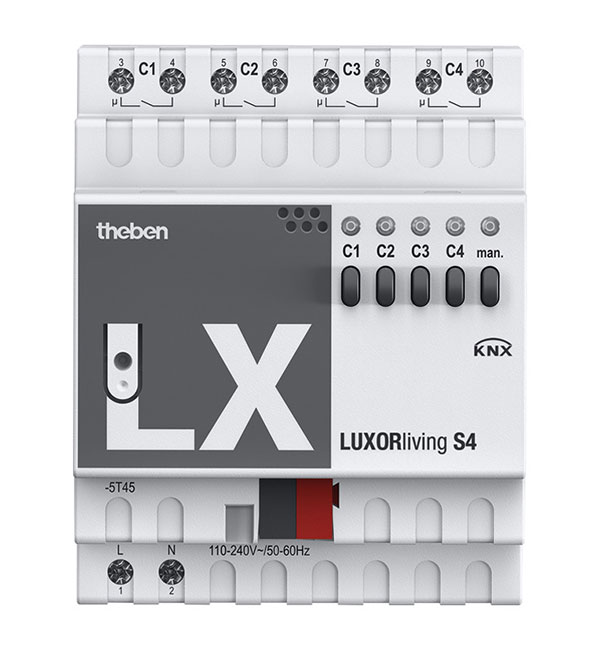

LUXORliving S4 4-way switching actuator 16A

4-way Relay Output

SKU: 127-300-4

Overview
SPECIFICATIONS

LUXORliving S4 Actuator/Relay 4-way

4-way switching actuator/relay
LED switching status display for each channel
Manual operation on device
DIN rail mounting
KNX bus device

LUXORliving is the future-ready smart home system from Theben Germany — ideal for Australian homes and multi-residential apartments.
Built on the open KNX standard, it controls lighting, heating, and blinds with ease. Set the mood, reduce energy use, and simplify daily life with one touch or voice command.
Wake up to natural light, keep rooms at the perfect temperature, and manage everything from your phone. It’s comfort, safety, and sustainability built in—for today and for the future.

Connection	KNX bus
Operating current KNX	<4 mA
Operating voltage	110 - 240 V AC
Stand-by consumption	<0.3 W
Installation type	DIN rail
DIN Width	4 modules
Number of channels	4
Type of contact	NO contacts 16A, 3A
Incandescent/halogen lamp load	2000 W
Halogen lamp load	2000 W
Fluorescent lamp load (conventional) parallel-corrected	1300 W (140 µF)
Fluorescent lamp load (conventional) not corrected	2000 VA
Fluorescent lamp load (electronic ballast)	1200 W
Energy saving lamps	300 W
LED lamp <2W	55W
LED lamp 2-8W	600W
LED lamp >8W	600W
Inrush current max.	800A / 200µs
Type of protection	IP 20
Protection class	II

LUXORliving S4 Actuator/Relay 4-way

4-way switching actuator/relay
LED switching status display for each channel
Manual operation on device
DIN rail mounting
KNX bus device
