VIDEO AND AUDIO

IP Video Input 8-Channel
Incoming Bandwidth 80 Mbps
Outgoing Bandwidth 60 Mbps
HDMI Output Resolution 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
VGA Output Resolution 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
Video Output Mode HDMI/VGA Simultaneous Output
Multi-View Display 1/4/6/8

DECODING

Audio Compression G.711A/G.711U/G.726
Video Compression H.265+/H.265/ H.264+/H.264
Record Resolution 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback 8-Channel
Capability 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP

RECORD MANAGEMENT

Record Mode • Manual Recording
• Scheduling Recording
• Motion Detection Recording
Playback Mode • Instant Playback
• Regular Playback
• Tag Playback
• Event Playback
Backup Mode • Regular Backup
• Video Clip Backup
Playback Function • Play
• Pause
• Stop
• Fast Forward
• Fast Backward
• Play By Frame
• Full Screen
• Video Clip
• Export Clip
• Digital Zoom
• Lock Recording
• Audio On/Off

NETWORK

Protocol UPnP (Plug and Play), NTP (Network Timing)
Mobile Phone Access Android, iOS
Web Browser Chrome (57+), Firefox (52+), Edge (91+)
Interoperability ONVIF, CGI

EXTERNAL INTERFACE

Network Interface 1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
USB Interface 2× USB 2.0
Audio Interface 1, Audio In; 1, Audio Out
Alarm In/Out N/A
Serial Interface N/A
Power 1× DC Jack
Reset Button 1
Speaker N/A
eSATA N/A
HDMI 1
VGA 1

HARD DISK

SATA 1 SATA Interface
Capacity Up to 10 TB Capacity for Each HDD

POE

Standard 802.3at/af Compliant
Interface 1- 8, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
PoE Budget 113 W Available for All PoE+ Ports, 30 W Max per Port

ALARM

General Alarm • Motion Detection
• Video Tampering
• Line-Crossing Detection
• Intrusion Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned/Removal Detection
• Vehicle Detection
• Human Detection
• Smart Frame
Anomaly Alarm • Video Loss
• Offline and IP Conflict
• Disk Exception
• Login Exception
Alarm Linkage • Recording
• White Light Alarm
• Buzzer
• Log
• Audible Alarm

GENERAL

Storage Temperature -40–70 °C
Storage Humidity 10%~90% RH Non-Condensing

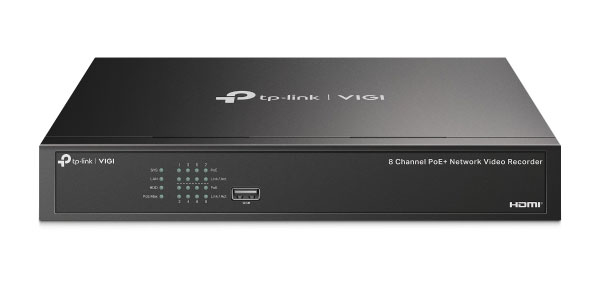

Package Contents • VIGI Network Video Recorder
• Power Adapter
• HDD Screws
• Mouse
• Quick Installation Guide
Working Temperature NVR: -10–55 °C
Power Adapter: 0–40 °C
Working Humidity 10%~90% RH Non-Condensing
Dimensions( W X D X H ) 294 × 180 × 44 mm
Net Weight 1.12 Kg
Gross Weight 2.2 Kg
Power Supply 53.5V DC/2.43A
Power Consumption • 2.38 W (Without Disk)
• 12.94 W (With Disk)
Certifications CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI
