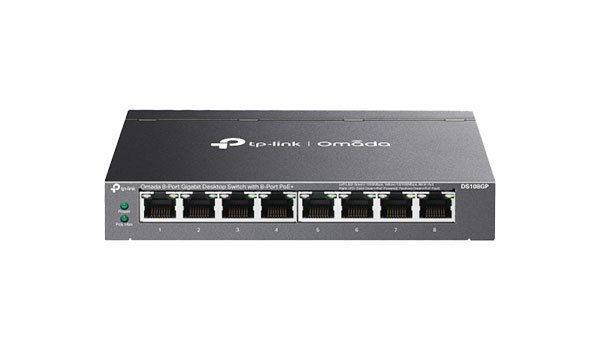

TP-Link DS108GP 8-Port Gigabit PoE Switch 8x PoE+

TP-LINK DS108GP 8-PORT GIGABIT POE SWITCH 65W

SKU: 126-200

Overview
Specifications
Downloads

DS108GP

Omada 8-Port Gigabit Desktop Switch with 8-Port PoE+

8× 10/100/1000 Mbps RJ45 ports
8× PoE+ ports transfer data and power on individual cables
Works with IEEE 802.3af/at compliant PDs
802.1p/DSCP QoS enable smooth latency-sensitive traffic
Supports PoE power up to 30 W for each PoE port
Supports PoE power up to 65 W for all PoE ports^*
Up to 250m (820ft) data and power transmitting range under Extend Mode^**
PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
Plug and Play. No configuration or central management required.^†

HARDWARE FEATURES
Interface	• 8× 10/100/1000 Mbps RJ45 Ports • AUTO Negotiation • AUTO MDI/MDIX
Network Media	• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity	Fanless
Physical Security Lock	Yes
External Power Supply	External Power Adapter(Output: 53.5VDC / 1.31A)
Packet Forwarding Rate	11.904 Mpps
PoE Ports (RJ45)	• Standard: 802.3 af/at compliant • PoE Ports: Ports 1–8 • Power Supply: 65 W
Mac Address Table	4K
Jumbo Frame	16 KB
Switching Capacity	16 Gbps
Dimensions ( W x D x H )	6.2×4.0×1.0 in (158×101×25 mm)
Max Power Consumption	• 4.7 W (220/50 Hz no PD connected) • 74.39 W (220/50 Hz with 64 W PD connected)
Max Heat Dissipation	• 16.03 BTU/h (no PD connected) • 253.67 BTU/h (with 64 W PD connected)

SOFTWARE FEATURES
Transmission Method	Store-And-Forward
Advanced Functions	• Compatible With IEEE 802.3af/at Compliant PDs • IGMP Snooping • Mac Address Auto-Learning And Auto-Aging • IEEE802.3x Flow Control • 802.1p/DSCP QoS • Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission) • PoE Auto Recovery (Ports 1-8)

SOFTWARE FEATURES

Transmission Method

Store-And-Forward

Advanced Functions

• Compatible With IEEE 802.3af/at Compliant PDs
• IGMP Snooping
• Mac Address Auto-Learning And Auto-Aging
• IEEE802.3x Flow Control
• 802.1p/DSCP QoS
• Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission)
• PoE Auto Recovery (Ports 1-8)

OTHERS
Certification	CE, FCC, RoHS
Package Contents	• DS108GP • Power Adapter • Installation Guide
Environment	• Operating Temperature: 0–40 ℃ (32–104 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing

OTHERS

Certification

CE, FCC, RoHS

Package Contents

• DS108GP
• Power Adapter
• Installation Guide

Environment

• Operating Temperature: 0–40 ℃ (32–104 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
