Manufacturer: Digital Watchdog

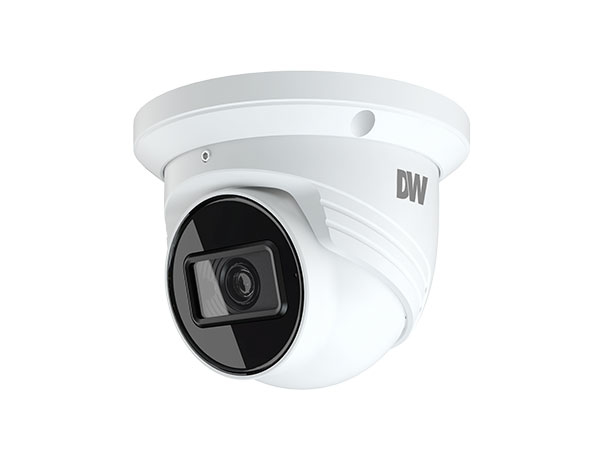

DWC-MT95WiATW 5MP Turret 2.8-12mm

Digital Watchdog DWC-MT95WIATW 5MP TURRET Varifocal 2.8-12mm
SKU: 123-003

DW MEGApix® IP cameras are NDAA compliant and deliver crystal-clear images at 5MP resolution and real-time 25fps.
The IP67-rated turret camera features a 2.8~12mm varifocal lens with motorized zoom and a 360° camera gimbal for absolute view adjustment.
Added intelligence includes line crossing, perimeter intrusion, video tampering detection and object classification.
All Digital Watchdog MEGApix cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.

  • 5MP 1/2.7” image sensor at real-time 30fps
  • 2.8~12mm vari-focal lens with motorized zoom and auto-focus
  • True Wide Dynamic Range (WDR)
  • Multiple codecs (H.265, H.264, MJPEG) with simultaneous dual-stream
  • 50m range Smart IR™
  • Object classification video analytics
  • Line crossing video analytics
  • Perimeter intrusion video analytics
  • Video tampering with scene change detection video analytics
  • Video tampering with video blur detection video analytics
  • Video tampering with abnormal color detection video analytics
  • Smart DNR™ 3D digital noise reduction
  • True day/night with mechanical IR cut filter
  • Programmable privacy zones
  • Auto gain control (AGC)
  • Backlight compensation (BLC)
  • De-Fog™ extreme weather image compensation
  • Auto white balance (AWB)
  • Motion detection
  • Audio input through built-in microphone
  • Micro SD/SDHC/SDXC class 10 card slot (card not included)
  • Web server built-in
  • PoE class 3 and DC12V
  • ONVIF conformant, profile S
  • NDAA compliant
  • IP67 dust-tight and waterproof to 1m
  • IK 10-rated impact-resistant
  • 3 year warranty

NDAA logo

Digital Watchdog® IP cameras, analog cameras, NVRs, DVRs, network devices and management software sold and distributed worldwide are designed and developed in U.S.A. and Korea. Manufactured in South Korea and Taiwan.


Image sensor
5MP 1/2.7” CMOS
Total pixels
2592 (H) X 1944 (V)
Minimum scene illumination
0.01 lux (color)
0.0 lux (B/W)
S/N ratio
50dB

LENS

Focal length
2.8~12mm, F1.4
Lens type
Vari-focal lens with motorized-zoom and auto-focus
Field of view (FoV)
95.1° ~ 30°
IR distance
164ft range

I/O

Audio in/out
1 audio input, 1 microphone built-in
Audio compression
G.711A / U

OPERATIONAL

Shutter mode
Auto, manual
Shutter speed
1/30s ~ 1/100000s
Auto gain control
Auto
Day / night
Auto, day (color), night (B/W), schedule
Smart DNR™ 3D digital noise reduction
3D DNR
Wide dynamic range (WDR)
True WDR low, middle, high
Wide dynamic range (WDR) dB
120dB
Privacy zone
4 programmable privacy masks
Camera analytics
Line crossing, perimeter intrusion, video tampering detection (scene change, video blur, abnormal color detection), object classification (differentiate humans from objects)
Alarm notifications
Notifications via e-mail or FTP server
Memory slot Micro SD / SDHC / SDXC (card not Included)

NETWORK

LAN
802.3 compliance 10/100 LAN
Video compression type
H.265. H.264, MJPEG
Resolution
5MP, 4MP, 2K, 3MP, 2.1MP/1080P, 720P
(60Hz: 1 ~ 30fps; 50Hz: 1~25fps)
HFR mode: 1080P / 720P
(60Hz: 1 ~ 60fps; 50Hz: 1~50fps)
Frame rate
Up to 30fps at all resolutions
Video bitrate
64 Kbps ~ 8 Mbps
Bitrate control
Multi-streaming CBR/VBR at H.264/ H.265 (controllable frame rate and bandwidth)
Streaming capability
Dual-stream at different rates and resolutions
IP
IPv4, IPv6
Protocol
UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, 802.1x, UPnP, HTTPs, QoS
Security
IP filtering, MAC filtering, authentication (ID/PW), SSL/TSL
ONVIF conformance
Yes
Web viewer
OS: Windows® Browser: Internet Explorer
Video management software
DW Spectrum® IPVMS

ENVIRONMENTAL

Operating temperature
-22°F ~ 140°F (-30°C ~ 60°C)
Operating humidity
95% RH (non–condensing)
IP rating
IP67-rated
IK rating IK10 impact-resistant
Other certifications
CE, FCC, RoHS

ELECTRICAL

Power requirement
DC 12V, PoE IEEE 802.3af Class 3. (Adapter not included).
Power consumption
9W

MECHANICAL

Material
Metal turret housing
Dimensions
5.16" x 4.13" (131.1 x 105 mm)
Weight
1.45 lb (0.66 kg)
Warranty 3 year warranty
