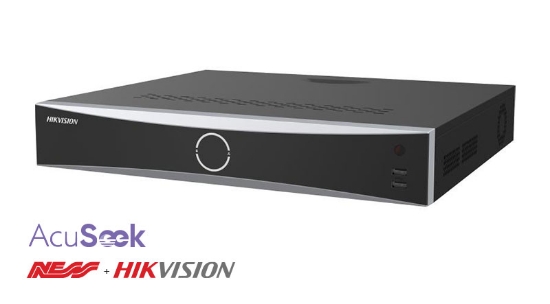

Hikvision DS-7732NXI-I4/16P/VPro 32ch NVR VPro Series 4TB

32ch ACUSEEK NVR

IN STOCK NOW

SKU: 114-642-4

Overview
DOWNLOADS
SPECIFICATIONS

VPro Series 32CH NVR with AcuSeek

Search Broadly
Find people or vehicles by attributes, behaviour, or even surroundings.
Search Instantly
Just a few words, and your target appears in seconds.
Search Precisely
Powered by a large-scale AI model, AcuSeek delivers pinpoint accuracy

H.265+/H.265/H.264+/H.264 video formats
Intelligent analytics based on Guanlan Large-Scale AI Models
Up to 32-ch AcuSeek and AcuSearch function
Up to 16-ch facial recognition for face picture
Up to 32-ch IP camera inputs
Up to 32-ch 1080p decoding capability
1.5U case
4x SATA ports support up to 20TB HDD each
1x 4TB HDD included

Intelligent Analytics
AI by NVRFacial recognition
AI by NVR and CameraFacial recognition, perimeter protection, video structuralization, AcuSearch, motion detection 2.0, ANPR, people counting, AcuSeek
Engine2 engines. 1 is for face picture and AcuSearch. 1 is for AcuSeek

Facial Recognition
Face Picture LibraryUp to 16 face picture libraries, with up to 50,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 1 GB)
Face Picture Comparison8-ch
Facial Detection and AnalyticsFace picture comparison, human face capture, face picture search
Facial Detection and Analytics Performance4-ch human face capture (HD network camera, up to 8 MP, H.264/H.265)

AcuSearch
PerformanceIf the cameras support Hikvision AcuSense Technology and have enabled AcuSearch function, the NVR supports AcuSearch in all channels, capable of modeling 300,000 targets/day.

AcuSeek
PerformanceIf the cameras support Hikvision AcuSense Technology and have enabled AcuSearch function, the NVR supports AcuSeek in all channels, capable of modeling 300,000 targets/day.
Search LanguageEnglish

ANPR
By CameraAll channels
Vehicle AttributesPlate number, license plate color, license plate type
Plate AttributesVehicle brand, vehicle color, vehicle type

Video and Audio
IP Video Input32
Incoming Bandwidth384 Mbps
Outgoing Bandwidth256 Mbps
HDMI Output
HDMI1: 4K (3840 × 2160) / 30 Hz, 2K (2560 × 1440) / 60 Hz, 1920 × 1080 / 60 Hz, 1280 × 720 / 60 Hz
HDMI2: 1920 × 1080 / 60 Hz, 1280 × 720 / 60 Hz
VGA Output1920 × 1080/60Hz, 1280 × 720/60Hz
Video Output ModeHDMI/VGA independent output
CVBS OutputNA
Audio Output1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ)

Decoding
Decoding FormatH.265, H.265+, H.264, H.264+, MPEG4
Recording Resolution32MP/24MP/12MP/8MP/7MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous playback16-ch
Dual-Stream RecordingSupport
Live View Window Division1/4/6/8/9/16/25/36
Aux Port Window Division1/4/6/8/9/16/25/36
Stream TypeVideo, Video & Audio
Decoding Capability
Enable AI by NVR: 20-ch@1080p (30 fps)
Disable AI by NVR: 32-ch@1080p (30 fps)
Audio CompressionG.711ulaw,G.711alaw,G.722,G.726,MP2L2

Network
Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

PoE
Interface16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power≤ 200W
StandardIEEE 802.3 af/at

Auxiliary Interface
SATA4 SATA interfaces
CapacityUp to 20 TB capacity for each disk
Serial Interface2 RS-485 (half-duplex), 1 RS-232
Alarm In/Out16/9
USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0

General
Power Supply≤ 360 W
Consumption≤ 50W
Working Temperature-10℃～＋55℃
Working Humidity10％～90％
Chassis1.5U
Dimension (W × D × H)440 x 391 x 72 mm（17.32" x 15.39" x 2.81"）
≤5 kg (without HDD, 11.02 lb.)

Certification
Obtained CertificationCE, CB, REACH, WEEE, UKCA, RCM,IC,LOA,KC
CEEN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4

VPro Series 32CH NVR with AcuSeek

H.265+/H.265/H.264+/H.264 video formats
Intelligent analytics based on Guanlan Large-Scale AI Models
Up to 32-ch AcuSeek and AcuSearch function
Up to 16-ch facial recognition for face picture
Up to 32-ch IP camera inputs
Up to 32-ch 1080p decoding capability
1.5U case
4x SATA ports support up to 20TB HDD each
1x 4TB HDD included
