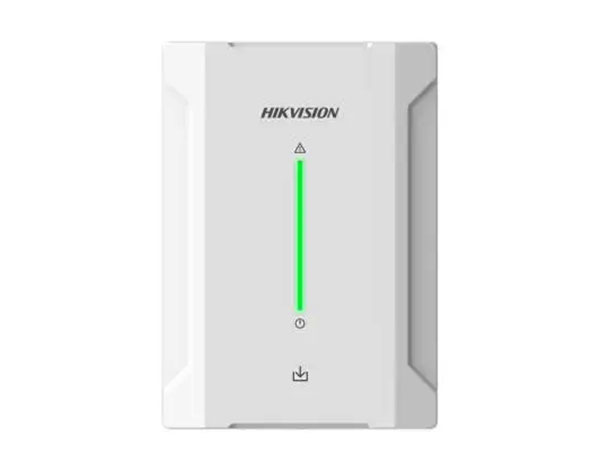

Hik DS-PM1-RT-HWB Tri-X Wireless Receiver

Software features

• Compatibility list

  TBA	DS-PDC10AM-EG2-WB	Wireless PIR AM Curtain Detector
  114-257	DS-PDC15-EG2-WB	HIK DS-PDC15-EG2-WB AX PRO Wireless Curtain PIR
  TBA	DS-PDCL12-EG2-WB	Wireless PIR Ceiling Detector
  114-258	DS-PDD12P-EG2-WB	HIK DS-PDD12P-EG2-WB AX PRO Wireless Dual-TeCh Det
  114-263	DS-PDEB1-EG2-WB	HIK DS-PDEB1-EG2-WB AX PRO Single Button Emergency
  114-265	DS-PDEBP1-EG2-WB	HIK DS-PDEBP1-EG2-WB AX PRO Single Button Pendant
  114-261	DS-PDMC-EG2-WB	HIK DS-PDMC-EG2-WB AX PRO Wireless Mag. Contact
  114-274	DS-PDMCK-EG2-WB	HIK DS-PDMCK-EG2-WB AX PRO Wireless Reed + Shock
  114-262	DS-PDMCS-EG2-WB	HIK DS-PDMCS-EG2-WB AX PRO Wireless Mag. Contact
  114-256B	DS-PDP15P-EG2-WB	Hik DS-PDP15P-EG2-WB(B) AX PRO Wireless PIR
  114-272	DS-PDPG12P-EG2-WB	HIK DS-PDPG12P-EG2-WB AX PRO PIR and Glassbreak
  TBA	DS-PDTPH-E-WB	Wireless Temperature Detector
  114-268	DS-PDWL-E-WB	HIK DS-PDWL-E-WB AX PRO Wless Water Leak Detector
  114-270	DS-PM1-O1H-WB	HIK DS-PM1-O1H-WB AX PRO Wall Switch
  114-269	DS-PM1-O1L-WB	HIK DS-PM1-O1L-WB AX PRO Relay Module
  114-255	DS-PS1-E-WB	HIK DS-PS1-E-WB AX PRO Wireless OutdoorSiren Blue
  114-254	DS-PS1-I-WB	HIK DS-PS1-I-WB AX PRO Wireless IndoorSiren Blue

Hardware features

• Bus1 Speed-X bus

Electrical characteristics

• Power supply9 to 24 VDC
• Typical voltage12 VDC
• Power consumption

  Maximum current: 100 mA@12 VDC

  Quiescent current: 40 mA@12 VDC

Wireless transmission

• RF frequency433 MHz
• Wireless securityFrequency hoping 128 AES encryption

Display

• LED Indicator

  1. Green: power/find me

  2. Orange: alarm/fault

General

• Dimension(WxHxD)110 mm × 155 mm × 32 mm
• Shell materialPlastic
• Weight233 g
• Operation temperature-10°C to 40°C
• Operation humidity10% to 90%

Device management

• Alarm inputUp to 32 wireless detectors(portable emergency button is not included)
• Wireless sounderUp to 8 wireless indoor sounder, 4 wireless outdoor sounder
