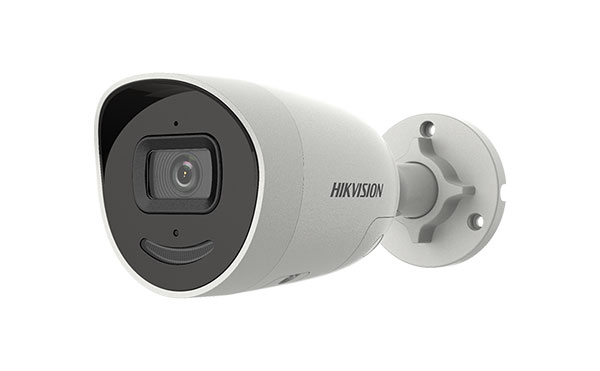

Hikvision DS-2CD2086G2-IU/SL 8MP Mini Bullet LiveGuard 2.8mm

Camera

• Image Sensor1/1.8" Progressive Scan CMOS
• Max. Resolution3840 × 2160
• Min. IlluminationColor: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
• Shutter Time1/3 s to 1/100,000 s
• Day & NightIR cut filter
• Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

• Lens TypeFixed focal lens, 2.8, 4, and 6 mm optional
• Focal Length & FOV

  2.8 mm, horizontal FOV: 110°, vertical FOV: 57°, diagonal FOV: 134°

  4 mm, horizontal FOV: 88°, vertical FOV: 50°, diagonal FOV: 100°

  6 mm, horizontal FOV: 60°, vertical FOV: 35°, diagonal FOV: 68°

• Lens MountM12
• Iris TypeFixed
• ApertureF1.6

DORI

• DORI

  2.8 mm: D: 89 m, O: 35 m, R: 18 m, I: 9 m

  4 mm: D: 99 m, O: 39 m, R: 20 m, I: 10 m

  6 mm: D: 140 m, O: 56 m, R: 28 m, I: 14 m

Illuminator

• Supplement Light TypeIR
• Supplement Light RangeUp to 40 m
• Smart Supplement LightYes
• IR Wavelength850 nm

Video

• Main Stream

  50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

  60 Hz: 24 fps (3840 × 2160)

  30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (640 × 480, 640 × 360)

  60 Hz: 30 fps (640 × 480, 640 × 360)

• Third Stream

  50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  *Third stream is supported under certain settings.

• Video Compression

  Main stream: H.265/H.264/H.265+/H.264+

  Sub-stream: H.265/H.264/MJPEG

  Third stream: H.265/H.264

  *Third stream is supported under certain settings.

• Video Bit Rate32 Kbps to 16 Mbps
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• Bit Rate ControlCBR/VBR
• Scalable Video Coding (SVC)H.265 and H.264 encoding
• Region Of Interest (ROI)1 fixed region for main stream and sub-stream

Audio

• Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
• Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
• Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise FilteringYes

Network

• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
• User/HostUp to 32 users. 3 user levels: administrator, operator and user
• SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Network Storage

  NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

  Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

• ClientiVMS-4200, Hik-Connect, Hik-Central
• Web Browser

  Plug-in required live view: IE 10+

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+

  Local service: Chrome 57.0+, Firefox 52.0+


• Image Parameters SwitchYes
• Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• Day/Night SwitchDay, Night, Auto, Schedule
• Wide Dynamic Range (WDR)120 dB
• SNR≥ 52 dB
• Image EnhancementBLC, HLC, 3D DNR

Interface

• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board StorageBuilt-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
• Built-In MicrophoneYes
• Built-In SpeakerPower: 1.2 W. Max. sound pressure level: 10 cm: 95 dB.
• AlarmVisual alarm
• Reset KeyYes

Event

• Basic EventMotion detection (human and vehicle targets classification), video tampering alarm, exception
• Smart Event

  Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types (human and vehicle))

  Scene change detection

• LinkageUpload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, strobe light, audible warning, send email

Deep Learning Function

• Face CaptureYes

General

• Power

  12 VDC ± 25%, 0.54 A, max. 6.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection

  PoE: 802.3af, Class 3, 36 V to 57 V, 0.3 A to 0.2 A, max. 8.0 W

• Dimension72.9 mm × 73.3 mm × 191.1 mm (2.9" × 2.9" × 7.5")
• Package Dimension234 mm × 120 mm × 117 mm (9.2" × 4.7" × 4.6")
• WeightApprox. 595 g (1.3 lb.)
• With Package WeightApprox. 810 g (1.8 lb.)
• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language

  33 languages

  English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

• General FunctionAnti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter

Approval

• EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 + A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015)
• Safety

  UL (UL 60950-1); CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014 );

  CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014 ); LOA (IEC/EN 60950-1)

• EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• ProtectionIP67 (IEC 60529-2013)
