Picture of Hikvision DS-K1107AEK EM card reader with Keypad

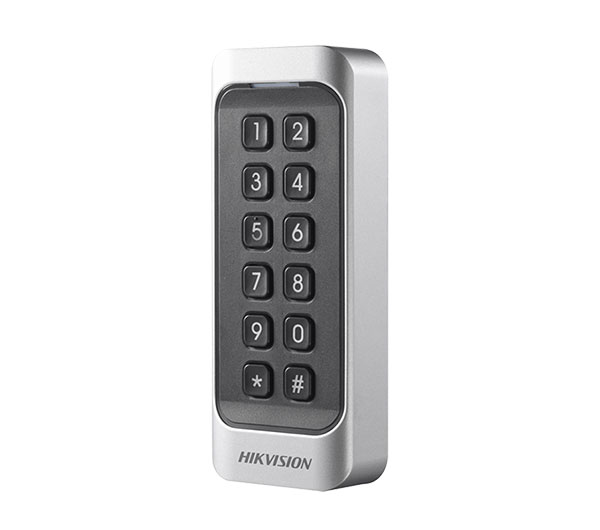

Hikvision DS-K1107AEK EM card reader with Keypad

HIKVISION DS-K1107AEK EM CARD READER WITH KP

SKU: 114-439

Overview
Specifications
Downloads

Hikvision DS-K1107AEK EM Card Reader

Equipped with the 32-bit high-speed processor
RS-485 and Wiegand (W26/W34) protocol, and OSDP protocol
Build-in EM card reading module (Frequency:125KHz).
Supports tampering alarm
Built-in buzzer for identifying the reading status
Online upgrade function

System

Processor32-bit

Interface

TAMPERSupport
RS-485Support
WiegandSupport (set via DIP switch)

Authentication

Card Reading Frequency125 KHz
Card Reading Distance≤50 mm (≤1.97")

General

IndicatorPower indicator, status indicator
Power Supply12 VDC
Power Consumption≤2 W
Working Temperature-20 °C to 65 °C (-4 °F to 149 °F)
Working Humidity10% to 90% (Non Condensing)
Protective LevelIP65
Dimensions115 mm × 44 mm × 22 mm (4.53'' × 1.73'' × 0.87'')
InstallationWall Mounting with Screws; Do Not Support Gang Box
KeypadKeypad with 12 Keys (0~9, *, #)
BuzzerSupport

Hikvision DS-K1107AEK EM Card Reader

Equipped with the 32-bit high-speed processor
RS-485 and Wiegand (W26/W34) protocol, and OSDP protocol
Build-in EM card reading module (Frequency:125KHz).
Supports tampering alarm
Built-in buzzer for identifying the reading status
Online upgrade function
