O- Hik DS-D5B86RB/D 86" Smart interactive screen
Sorry - this product is no longer available
Manufacturer:
Hikvision

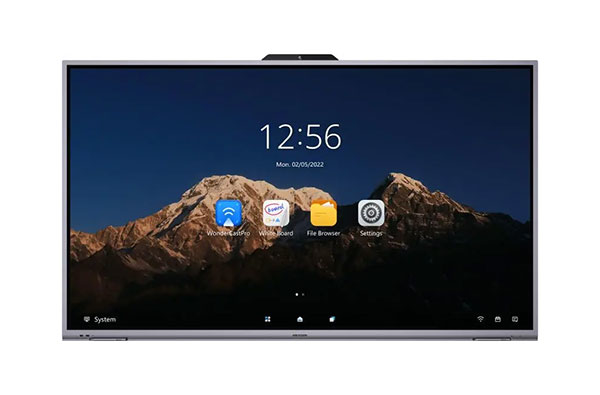

O- Hik DS-D5B86RB/D 86" Smart interactive screen
HIKVISION DS-D5B86RB/D 86" SMART INTERACTIVE SCREEN
SPECIAL ORDER - Check availability before ordering
SKU:
114-393
Share:
Overview
Specifications
Downloads
Hikvision DS-D5B86RB/D 86inch 4K Interactive Flat Panel
Ultra HD display with up to 3840 × 2160 resolution of input signal available.
20px ultra fine writing, and 2 mm diameter recognizable with the precision of 1 mm.
Built-in Wi-Fi realizes miracasting without any cable connection.
Built-in interactive whiteboard system allows annotating and sharing by QR code.
Looping-out display available.
Various audio and video interfaces for device access.
Built-in network switch chip saves a network switch.
Built-in Android system provides kinds of applications.
Compatible with OPS/OPS-C devices, realizing smooth switch between built-in systems.
Ultra-thin design with aluminum profile frame.
Product Model
Product Model
DS-D5B86RB/D
Display
Screen Size
86 inch LED Backlight
Backlight
DLED
Pixel Pitch
0.164 (H) × 0.493 (V) mm
Resolution
3840 × 2160@60 Hz
Brightness
350 cd/m²
Color Depth
10 bit
Contrast Ratio
1200 : 1 (Typ.)
Response Time
6 ms
Color Gamut
90% NTSC (CIE1931) (Typ.)
Refresh Rate
60 Hz
Viewing Angle
178° (H) / 178° (V)
Built-In System
Operation System
Android 11
Processor
A72*2 + A53*4, 1.8 GHz
Memory
4 GB
Built-In Storage
64 GB
NIC
Built-in 1000 Mbps NIC, supporting routing; IEEE 802.11 a/b/g/n/ac with 2 × 2 MIMO, supporting both 2.4 GHz and 5GHz bands
Touch
Type
Infrared touch screen
Glass
AG smooth glass
Touch Point
Max 45 point multi-touch
Touch Response Time
< 10 ms
Touch Precision
± 1 mm (≥ 90% touching area)
Internal Function
Loudspeaker
Built-in 2 × 16 W loudspeaker
Bluetooth
Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.0 and previous version
Interface
Video & Audio Input
HDMI IN × 2, MAX 4K @30 Hz, LINE IN × 1
Video & Audio Output
HDMI OUT(HDMI 2.0) × 1, MAX 4K @60 Hz, LINE OUT × 1
Control Interface
RS-232 × 1, Touch-USB × 1
Network Interface
RJ45 (1000 Mbps port) × 2
Data Transmission Interface
USB-C × 1, USB-A × 2 on front panel, USB-A × 2 on rear panel
Power
Power Consumption
≤ 490 W (full load)
Standby Consumption
0.5 W
Working Environment
Working Temperature
0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
Working Humidity
10% to 90% RH
General
Power
100 to 240 V, AC, 50/60 Hz
Product Dimensions
1963 × 1159 × 87.5 mm
Package Dimensions (W × H × D)
2187 × 1366 × 274 mm
Net Weight
65.62 kg
Gross Weight
86.74 kg
Lifespan
50000 hours
Camera
Pixel
8 MP
Camera Function
Smart switch between Android system and OPS
Field Angle
120°(diagonal), 110°(horizontal), 66°(vertical)
Distortion
≤6%
Camera Resolution Ratio
Up to 4K
Microphone
Specification
Omni-directional 6-array layout
Mic Function
Echo reduction and smart noise-cancellation
Voice Distance
8 m
Sampling Rate
32 K
Mic Sampling Rate
16 bit
