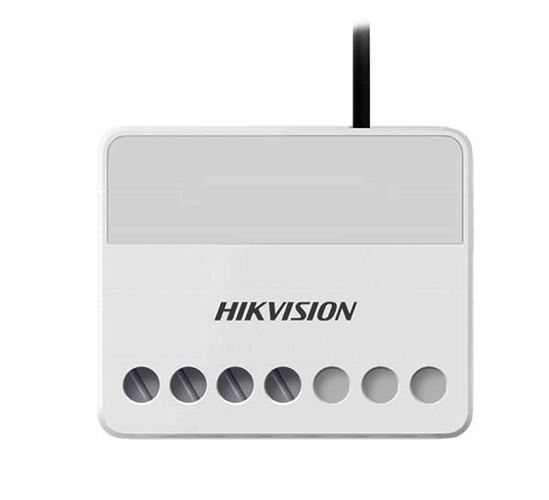

Picture of Hikvision AX PRO Series Wall Switch GEN2

Manufacturer: Hikvision

Hikvision AX PRO Series Wall Switch GEN2

HIKVISION DS-PM1-O1H-WB WALL SWITCH

SKU: 114-270

Overview
Specifications
Downloads

Wall Switch GEN2

433MHz two-way wireless communication
AES-128 encryption
LED display, show status of device and replay on/off display
Small case design, which can be put into hiding places easily
Automation operating, one button turn on/off from APP/Keyfob/Keypad
Setting scenarios by different events

Software Features

Scenario SettingBy Alarm, By Operation, By Fault, By Schedule, By Manual
Learning Button1, For register

Hardware Features

Serial Port1, for debug

Electrical Characteristics

Power SupplyAC 100v – 240v, 50/60 HZ
Operation Humidity10％~90％
Operation Temperature﹣10℃~+55℃

Wireless Transmission

RF Frequency433MHz
RF MethodTwo way communication
RF Modulation2GFSK
RF Distance800m
Wireless SecurityAES-128

Display

LEDs Status3, Register/Signal (Green/Red), Power (Green), Relay Status (Blue)

General

Installation MethodWall Mounting or Inside 86 box
Dimension(WxHxD)38x25x18mm
Shell MaterialPlastic
ColorWhite
31.5g

Device Management

Relay Output1, NO/NC (AC 100~240v, Max 13A）
