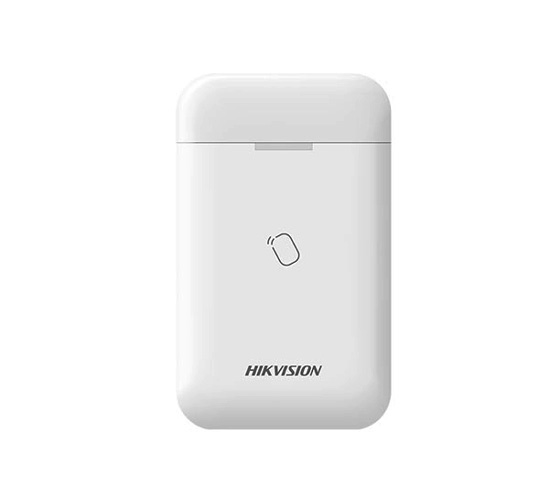

HIK DS-PT1-WB AX PRO Tag Reader

Hardware Features

• Power SwitchPower on/off

Electrical Characteristics

• Battery TypeThree AA batteries
• Operation Humidity10% to 90% (no condensing)
• Operation Temperature-10°C to +55°C (-4°F to +122°F)
• Power Consumption

  Quiescent current: 110 uA

  Max current: 292mA

  Voltage: 1.5 VDC

• Battery Life Span2 years (swipe tag 10 times per day )

Wireless Transmission

• RF Frequency433 MHz
• RF Modulation2GFSK
• RF Distance900m(open area)

Display

• Indicator5, area(blue), fault(orange), arm(blue), disarm(green), alarm(red), signal(red/green)

General

• Installation MethodWall mounting
• Dimension(WxHxD)75*124*21 mm
• Colorwhite
• 176g (with battery)
