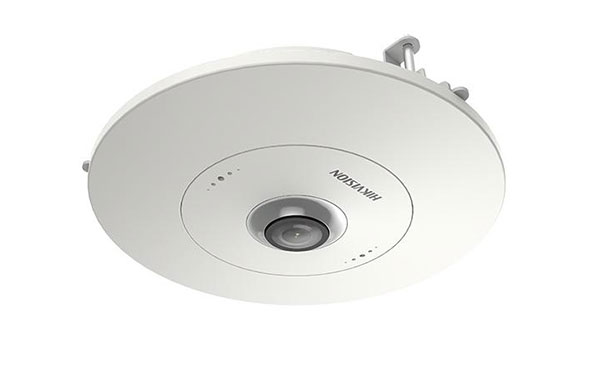

HIK DS-2CD6365G0E-S/RC 6MP Fisheye Camera

Camera

• Image Sensor1/1.8'' Progressive Scan CMOS
• Max. Resolution3072 × 2048
• Min. Illumination

  Color: 0.01 Lux @ (F1.2, AGC ON),

  B/W: 0.001 Lux @ (F1.2, AGC ON)

• Shutter Time1 s to 1/100,000 s

Lens

• Focal Length & FOV1.27 mm, 360°(In-ceiling mounting)
• Lens MountM12
• ApertureF2.6

Video

• Main Stream

  50Hz: 25fps (3072 × 2048, 2048 × 2048, 1280 × 1280)

  60Hz: 30fps (3072 × 2048, 2048 × 2048, 1280 × 1280)

• Sub-Stream

  50Hz: 25fps (720 × 720, 720 × 480)

  60Hz: 30fps (720 × 720, 720 × 480)

• Video Compression

  Main stream: H.265+/H.265/H.264+/H.264

  Sub stream: H.265/H.264/MJPEG

• Video Bit Rate32 Kbps to 16 Mbps
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• Scalable Video Coding (SVC)H.265 and H.264 support
• Region Of Interest (ROI)4 fixed regions for main stream and sub-stream

• Fisheye Display
• Mount TypeSupport in-ceiling mounting
• Display Mode

  14 display modes in total

  Software decoding:

  Fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ, half sphere, cylinder

  Hardware decoding:

  Fisheye view, 180 panorama view, panorama view, 4PTZ, 4PTZ fusion, fisheye + 3PTZ

Audio

• Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
• Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
• Audio Sampling Rate8 kHz/16 kHz
• Environment Noise FilteringYes

Network

• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
• Simultaneous Live ViewUp to 20 channels
• APIONVIF (PROFILE S, PROFILE G), ISAPI
• User/HostUp to 32 users. 3 user levels, administrator, operator and user
• SecurityPassword protection, HTTPS encryption, IEEE 802.1x port-based network access control, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF
• Network StorageSupport microSD/SDHC/SDXC card (256 G), local storage and NAS (NFS,SMB/CIFS), ANR
• ClientiVMS-4200, iVMS-4500, Hik-Connect, iVMS-5200
• Web BrowserIE8+, Chrome31.0-44, Firefox 30.0-51, Safari8.0+


• Image SettingsSaturation, brightness, contrast, sharpness, AGC and white balance are adjustable by client software or web browser
• Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In (-S)
• Wide Dynamic Range (WDR)Digital WDR
• Image EnhancementBLC, HLC, defog, 3D DNR
• Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format

Interface

• Ethernet Interface1 RJ45 10M/100M/1000M self-adaptive Ethernet port
• On-Board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB
• Built-In Microphone2 built-in microphones
• Audio

  -S:

  1 Audio input (line in, 3.5 mm), 1 audio output (line out, 3.5 mm), mono sound

• Alarm-S: 1-ch alarm input, max. 12 V; 1-ch alarm output, max 12 VDC, 0.5 A
• Reset KeyYes

Event

• Basic EventMotion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login, HDD full, HDD error
• Smart Event

  Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection

  Audio exception detection

General

• Power

  12 VDC ± 20%, 0.5 A, 6 W, two-core terminal block

  PoE: 802.3af, Class 3, 36 V to 57 V, 0.3 A to 0.2 A

• DimensionØ165 × 69 mm (6. 5" × 2.7")
• Approx. 480 g (1.1 lbs)
• Startup And Operating Conditions-10 °C to +40 °C (14 °F to +104 °F), Humidity 95% or less (non-condensing)
• General FunctionOne-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Approval

• EMC

  IC: IC-VoC(ICES-003 Issue 7:2020),

  FCC: FCC-SDoC(ANSI C63.4,FCC Part15 sub B),

  KC: KN32:2015,KN35:2015,

  CE: CE-EMC(EN 50130-4:2011+A1:2014,EN 55032:2015,EN 61000-3-2:2014,EN 61000-3-3:2013),

  RCM: AS/NZS 60950.1:2003 + Am1, Am2 and Am3,AS/NZS CISPR 32:2015

• Safety

  CB: IEC 60950-1,

  UL: UL 60950-1:2014,CAN/CSA C22.2 No. 60950-1-07:2014,

  LOA: SANS IEC60950-1,

  BIS: IS 13252(Part 1)2010+A1:2013+A2:2015

• EnvironmentCE: CE-RoHS(RoHS Directive 2011/65/EU+2015/863)
