Manufacturer: Hikvision

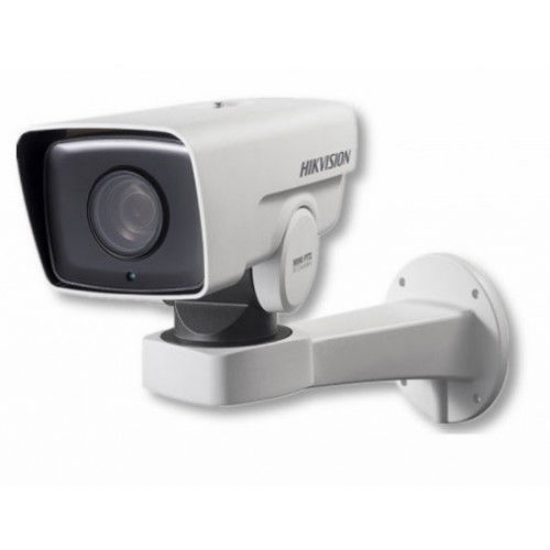

Hikvision Mini Positioner Bullet PTZ 2MP 20x

DS-2DY2320IW-DE4 2MP Mini Positioner PTZ bullet Camera
SKU: 114-154

Hikvision DS-2DY3220DE4 2MP Network IR PTZ Cameras are able to capture high-quality images in low light environment with its black anti-reflective glass.

The black anti-reflective glass increases the luminousness which can reach up to 100m IR distance.

Embedded with 1/2.8’’ progressive scan CMOS chip makes WDR and 2MP real-time resolution possible. With the 20X optical zoom Day/Night lens, the camera offers more details over expansive areas.

SPECIAL ORDER - Check availability before ordering

  • 1/2.8" Progressive Scan CMOS
  • 2048 x 1536/1920 x 1080
  • Support H.265 Video Compression
  • 20X Optical Zoom
  • WDR
  • 3D intelligent positioning function
  • Up to 100m IR distance
  • 12VDC &POE+
Camera
Image Sensor: 1/2.8" HD progressive scan CMOS
Effective Pixels: 1920(H)x1080(V)
Signal System: PAL/NTSC
Minimum Illumination: Color: 0.05 Lux @(F1.6, AGC ON)
B/W: 0.01 Lux @(F1.6, AGC ON)
0 Lux with IR
White Balance: Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
AGC: Auto/Manual
BLC: ON/OFF
HLC: Support
WDR: DWDR
Shutter Time: 1/1 s to 1/30,000 s
Day& Night: ICR
Digital Zoom: 16X
Privacy Mask: 8 programmable privacy masks
Auto Focus: Auto / Semi-automatic / Manual
Lens
Focal Length: 4.7 mm to 94 mm, 20× Optical
Zoom Speed: Approx. 2.7 s (Optical Lens, Wide-Tele)
Field of View: 61.4° to 2.9° (Wide-Tele)
Minimum Working Distance: 10 mm to 1500mm (Wide-Tele)
Aperture Range: F1.6 to F3.5
Pan & Tilt
Pan Range: 360°endless
Pan Speed: Configurable, from 0.1°/s to 60°/s
Tilt Range: -40°~30° (Auto Flip )
Tilt Speed: Configurable, from 0.1°/s to 30°/s
Proportional Zoom: Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset: 300
Patrol: 8 patrols, up to 32 presets for each patrol
Pattern: 4 pattern scans, record time over 10 minutes for each scan
Power-off Memory: Support
Park Action: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
PTZ Position Display: ON/OFF
Infrared
IR Distance: 100m
IR irradiation angle: Adjustable by zoom
Alarm
Alarm Input: 1
Alarm Output: 1
Alarm Linkage: Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.
Input & Output
Audio Input: 1-ch audio input
Audio Output: 1-ch audio output
Network
Ethernet: 10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution: 1920×1080
Main Stream: 50Hz:25fps (1920×1080,1280×960,1280×720), 50fps (1280×960,1280×720) ;
60Hz:30fps(1920×1080,1280×960,1280×720), 60fps (1280×960,1280×720)
Sub Stream: 50Hz:25fps(704×576), 25fps(640×576), 25fps(320×288)
60Hz:30fps(704×480), 30fps(640×480), 30fps(320×240)
Third Stream: 50Hz: 25fps(1920×1080, 1280×960, 1280×720, 704×576, 352×288, 176×144)
60Hz: 30fps(1920×1080, 1280×960, 1280×720, 704×480, 352×240, 176×120)
Video Compression: Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264/MJPEG
Third Stream: H.265/H.264/MJPEG
ROI encoding: support two fixed areas
Audio Compression: G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
Audio Mode: OFF/Audio input/Audio output
Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
Three-Stream: Support
Storage: Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording
General
Power Supply: 12 VDC & PoE
Power Consumption: Max.: 19 W
Working Temperature/Humidity: Working Temperature: Outdoor: -30°C to 65°C (-22°F to 149°F)
Working Humidity: ≤ 90%
Protection Level: IP68 Standard, TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
Dimensions: -DE: 367 mm × 122 mm × 242 mm (14.45" × 4.80" × 9.53")
-DE4: 255 mm × 129 mm × 195 mm (10.03" × 5.08" × 7.68")
Weight (approx.): Approx. 3 kg (6.61 lb)

Brochure

Hikvision DS-2DY3220DE4 2MP Network IR PTZ Cameras are able to capture high-quality images in low light environment with its black anti-reflective glass.

The black anti-reflective glass increases the luminousness which can reach up to 100m IR distance.

Embedded with 1/2.8’’ progressive scan CMOS chip makes WDR and 2MP real-time resolution possible. With the 20X optical zoom Day/Night lens, the camera offers more details over expansive areas.

SPECIAL ORDER - Check availability before ordering
