Sorry - this product is no longer available

Manufacturer: Hikvision

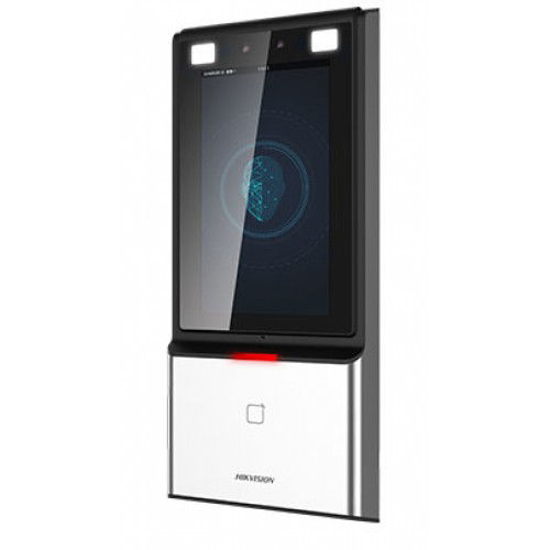

Hikvision DS-K1T604M Face Recognition Terminal

Face Recognition Terminal
SKU: 114-145

Face Recognition Terminal Authentication System

DS-K1T604 series Face Recognition Terminal adopts deep learning algorithm, which helps to recognize the face faster and more accurate. It also supports multiple authentication modes: 1:N face picture match, IC card authentication, etc. Face Recognition Terminal can apply to the scenarios of buildings, businesses, financial industries, and other important areas.

Hikvision DS-K1T604M DeepinGo series Face Recognition Terminal, 7-inch LCD touch screen,2 Mega pixel wide-angle lens,Built-in Mifare card reading module;Face recognition distance:0.3m to 1m,Max.10000 face pictures;Supports TCP/IP,DC 12V/2AApplication Situation: IndoorFace Recognition Accuracy Rate > 99%Face Recognition Duration(1:N) = 0.5sFace Recognition Distance: 0.3m ~ 1m

System Parameters
1:N Face Recognition Duration:≤0.5 s/Person
Operation System:Linux
Card Capacity:50,000
Face Recognition Accuracy Rate:≥ 99%
Card Type:Mifare Card
Camera:2 MP Dual-Lens Camera; 1080p; Auto-Focus; Suggested Person Recognition Height: 140 cm to 190 cm
Event Capacity:50,000
Face Recognition Distance:0.3 m to 1 m
Face Capacity:10,000; JPG and JPEG Format
Processor:GPU
Device Interfaces
Communication Mode:10/100/1000 Mbps Self-Adaptive Network Interface
Output Interface:Lock × 1, Door Magnetic Sensor × 1, Alarm Output × 1
Input Interface:RS-485 × 1, Wiegand × 1, USB × 1, Exit Button × 1, Tamper × 1, Alarm Input × 2
General
LCD Screen:7-inch LCD Touch Screen; Ratio: 16:9; Resolution: 1280p × 600p
Power Supply:12 VDC/3 A (Without Adapter; Centralized Power Supply); 36W
Audio:Loudspeaker
Installation:Wall Mounting with/without Gang Box
Application Situation:Indoor; Outdoor (Installed with Shell)
Working Humidity:10% to 90% (Non-Condensing)
Working Temperature :-20°C to +65°C (-4°F to +149°F)
Dimensions (L×W×H):330mm × 140mm × 45mm (12.99” × 5.51” × 1.77")
