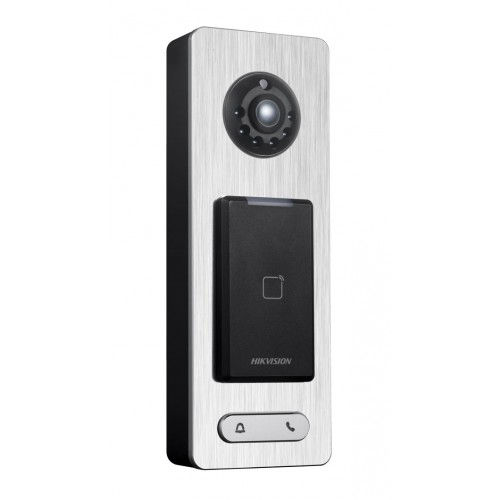

HIKVISION DS-KIT500S

Video Access Control Terminal

SKU: 114-143

Overview
Features
Specifications
Downloads
Mobile Apps

Video Access Control Terminal

DS-K1T500S is a video access control terminal, which is equipped with HD camera (2 MP/1080p). It supports multiple advanced technologies including face detection, smart card recognition, two-way intercom audio, remote live view, picture capture, video recording through NVR, and so on.

Access Can be granted via either Card or QR code.

Powers from 12VDC Power Supply (Not Included) - Refer Ness Part No POW315)

Can be programmed via the keypad on the terminal or programmed and managed by iVMS4200 Software.

Brushed metal surface
Communication via TCP/IP and Wi-Fi
Face detection and picture capturing function implemented by the built-in camera (1080P/2MP and IR light, Included)
Built-in Micro SD card slot; Supports inserting Micro SD card (Max. 128G) and saving captured pictures and recorded videos to the memory card (SD Card Sold Separately)
QR code authentication; Generates QR code via iVMS-4200 client software or other systems
Two way-audio
Open door remotely via iVMS-4200 client software
Max. 50,000 cards No., Max. 200,000 access control event records
Supports Mifare card reading
Multiple authentication modes: QR code or card
Working as a card reader, and supports Wiegand interface and RS-485 interface for accessing the controller

System Parameters
Micro SD Card:	Max. 128G
Storage:	50,000 cards 200,000 events
Card Reading Distance:	≥2cm
Card Reading Mode:	Mifare Card
Video Storage:	Record and Save Video through NVR or Micro SD Card
Camera:	2MP/1080P, IR Light
Processor:	32 Bit High-performance Processor
Device Interfaces
Communication Mode:	Terminal Mode: Uplink(TCP/IP), Downlink(RS485) Card Reader Mode: Uplink (Wiegand 26/34, RS-485)
Output Interface:	Lock × 1, Alarm Output (Doorbell) × 1
Input Interface:	Doorbell Button × 1， Door Sensor × 1， Alarm Input × 2， Tamper-Proof Switch × 1， Exit Button × 1
General
Working Current:	600mA (max)
Power Supply:	DC 12V/1A
Audio:	Audio Input: Build-in Micro Phone( Sensitivity: -25±3DB) Audio Output: Build-in Loudspeaker(1W)
Dimensions (L×W×H):	218mm × 78mm × 41mm (8.58" × 3.07" × 1.61")
Protection Level:	IP 65
Installation:	Wall Mounting
Working Humidity:	10% to 90% (Non-Condensing)
Working Temperature :	-40°C to +70°C (-40°F to +158°F)
