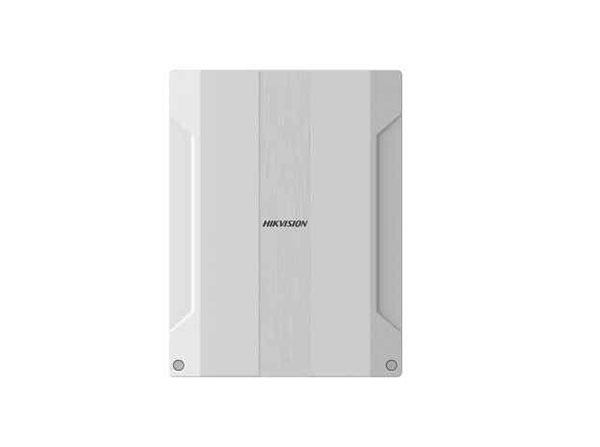

Hikvision DS-PM1-I16O2-WB AX PRO Multi I/O TX

Software features

• End of Line Resistance

  1k 2.2k 4.7k 8.2k

  NO/NC

Hardware features

• Serial port1
• Battery port1, 12 VDC input
• Tamper-ProofFront and rear
• Power switch1
• Alarm input16
• Alarm output2
• Power Output2 (12v, total1A)

Electrical characteristics

• Battery type

  Compatible with 12v 7 Ah

  150 × 64 × 94 mm

• Power supply100-240VAC，30w
• Operation humidity10%~90%
• Operation temperature–10 ~ 40°C
• Power consumption

  Battery Supply: Quiescent current (50mA), Max current (1500mA), Voltage (13.8V)

  220V Supply: Quiescent current (45mA), Max current (300mA), Voltage (220V)

• Battery life spanUp to 36 hours

Wireless transmission

• RF frequency433MHz
• RF methodTwo-way communication
• RF modulation2GFSK
• RF distance800m

Display

• Indicator3: Power（Green）, Fault（Amber）, Signal Strength（Green/Red）

General

• Installation methodWall Mounting
• Dimension(WxHxD)261*199*86.4mm
• Shell materialPlastic
• ColorWhite
• Weight

  975 g (without battery)

  3024g (with battery)
