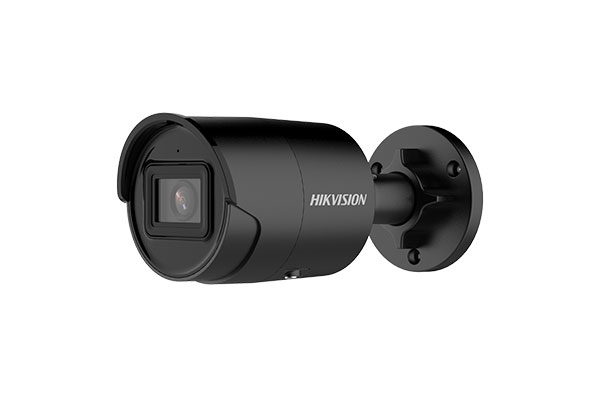

Hikvision DS-2CD2086G2-IU 8MP Acusns MiniBullt 2.8mm Blk

8MP ACUSENSE MINI BULLET 2.8MM BLACK

SKU: 114-092-2-BLK

4K AcuSense Fixed Mini Bullet Network Camera

Lens TypeFixed focal lens, 2.8, 4, and 6 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 111°, vertical FOV 59°, diagonal FOV 131°
4 mm, horizontal FOV 87°, vertical FOV 47°, diagonal FOV 102°
6 mm, horizontal FOV 51°, vertical FOV 28°, diagonal FOV 60°
Lens MountM12
Iris TypeFixed
ApertureF1.6

DORI
2.8 mm: D: 89.2 m, O: 35.4 m, R: 17.8 m, I: 8.9 m
4 mm: D: 99.4 m, O: 39.4 m, R: 19.9 m, I: 9.9 m
6 mm: D: 140.0 m, O: 55.6 m, R: 28.0 m, I: 14.0 m

Main Stream
50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 24 fps (3840 × 2160)
30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
Video Compression
Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings.
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
Bit Rate ControlCBR/VBR
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region Of Interest (ROI)1 fixed region for main stream and sub-stream
Target CroppingYes

Audio Type-U: Mono sound
Audio Compression-U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
Audio Bit Rate-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
Audio Sampling Rate-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering-U: Yes

ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
Simultaneous Live ViewUp to 6 channels
APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
User/HostUp to 32 users. 3 user levels: administrator, operator and user
SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network Storage
MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
ClientiVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+

Image Parameters SwitchYes
Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night SwitchDay, Night, Auto, Schedule
Wide Dynamic Range (WDR)120 dB
SNR≥ 52 dB
Image EnhancementBLC, HLC, 3D DNR

Basic EventMotion detection (human and vehicle targets classification), video tampering alarm, exception
Smart Event
Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types (human and vehicle))
Scene change detection
LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture

Power
12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.13 A, max. 7.2 W
DimensionØ70 mm ×161.7 mm (Ø2.8" × 6.37")
Package Dimension216 mm × 121 × 118 mm (8.5" × 4.8" ×4.6")
Approx. 485 g (1.1 lb.)
With Package WeightApprox. 749 g (1.6 lb.)
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General FunctionAnti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter

EMCCE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015)
SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
ProtectionIP67 (IEC 60529-2013)
