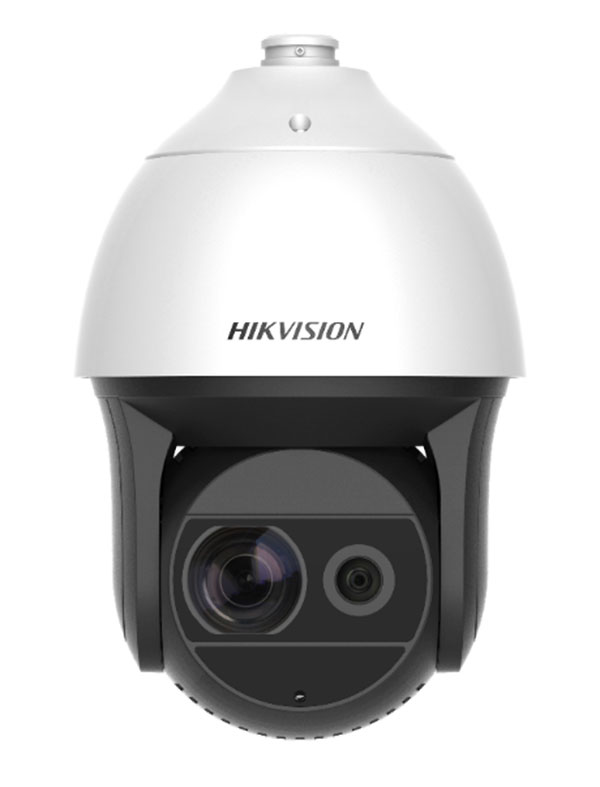

C - HIK DS-2DF843615X-AELW

Lens

• FOV

  Horizontal field of view: 51.1° to 1.7° (wide-tele)

  Vertical field of view: 31.3° to 1.0° (wide-tele)

  Diagonal field of view: 58.0° to 2.0° (wide-tele)

• Zoom SpeedApprox. 4.4 s (optical lens, wide-tele)
• Working Distance10 mm to 1500 mm (wide-tele)
• Aperture RangeF1.5 to F4.5
• Focal Length5.7 mm to 205.2 mm, 36× Optical


• Sub-Stream

  50Hz: 25fps (704 × 576, 640 × 480, 352 × 288)

  60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)

• Max. Resolution2560 × 1440
• Main Stream

  50Hz: 25fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720)

  60Hz: 30fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720)

• Third Stream

  50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)

  60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Network

• ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour
• APIOpen-ended, support ONVIF, and CGI, support HIKVISION SDK and Third-Party Management Platform
• Simultaneous Live ViewUp to 20 channels
• User/Host

  Up to 32 users

  3 levels: Administrator, Operator and User

• ClientiVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
• Web BrowserIE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51
• Security MeasuresUser authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
• Alarm LinkageAlarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.

Interface

• Alarm Output2-ch alarm output
• Alarm Input7-ch alarm input
• Audio Input1-ch audio input, 2 to 2.4 V[p-p], 1 KΩ ± 10%
• Audio Output1-ch audio output, line level, impedance: 600 Ω
• Network Interface1 RJ45 10 M/100 M Ethernet Interface; Hi-PoE
• RS-485HIKVISION, Pelco-P, Pelco-D, self-adaptive
• StorageBuilt-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
• CVBSYes

Compression Standard

• Video Compression

  Main Stream: H.265+/H.265/H.264+/H.264

  Sub-Stream: H.265/H.264/MJPEG

  Third Stream: H.265/H.264/MJPE

  H.264 with Baseline/Main/High Profile

• Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
• SVCYes

Camera Module

• 3D DNRYes
• AGCAuto/Manual
• Regional ExposureYes
• Regional FocusYes
• Image Sensor1/1.8" progressive scan CMOS
• Min. Illumination

  Color: 0.002 Lux @(F1.5, AGC ON)

  B/W: 0.0002 Lux @(F1.5, AGC ON)

  0 Lux with laser

• White BalanceAuto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
• Shutter Time1/1 s to 1/30,000 s
• Day & NightIR cut filter
• Digital Zoom16×
• Privacy Mask24 programmable polygon privacy masks
• Focus ModeAuto/Semi-automatic/Manual
• WDR120 dB
• BLCYes
• HLCYes
• Optical DefogYes
• EISYes
• Rapid FocusYes

Supplement Light

• Laser Distance500 m
• Smart Supplement LightYes

PTZ

• Movement Range (Pan)360° endless
• Pan SpeedConfigurable, from 0.1°/s to 210°/s, Preset Speed: 280°/s
• Movement Range (Tilt)From -20° to 90°
• Tilt SpeedConfigurable, from 0.1°/s to 150°/s, Preset Speed: 250°/s
• Proportional ZoomYes
• Presets300
• Patrol Scan8 patrols, up to 32 presets for each patrol
• Pattern Scan4 pattern scans, record time over 10 minutes for each scan
• Power-Off MemoryYes
• Park ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
• PTZ Status DisplayYes
• Preset FreezingYes
• Scheduled TaskPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output

Smart Features

• Smart TrackingManual Tracking, Auto Tracking (support tracking specified target types such as human and vehicle), Event Tracking
• Smart RecordANR (Automatic Network Replenishment), Dual-VCA
• ROIEight fixed region for each stream
• Perimeter Protection

  Intrusion, Line Crossing, Region Entrance, Region Exiting

  Support alarm triggering by specified target types (human and vehicle)

  Filtering out mistaken alarm caused by target types such as leaf, light, animal, and flag, etc.

• Event DetectionUnattended Baggage Detection, Object Removal Detection, Face Detection, Audio Exception Detection

General

• DimensionsΦ 266.6 mm × 410 mm (Φ 10.50" × 16.14")
• Approx. 8 kg (17.64 lb)
• Protection LevelIP67 Standard, IK10 (only supported by camera without wiper), 6,000V Lightning Protection, Surge Protection and Voltage Transient Protection
• Power

  24 VAC (Max. 60 W, including max. 18 W for laser and max. 12 W for heater)

  Hi-PoE (Max. 50 W, including max. 18 W for laser and max. 12 W for heater)

• Working TemperatureOutdoor: -40°C to 70°C (-40°F to 158°F)
• Working Humidity≤ 90%
