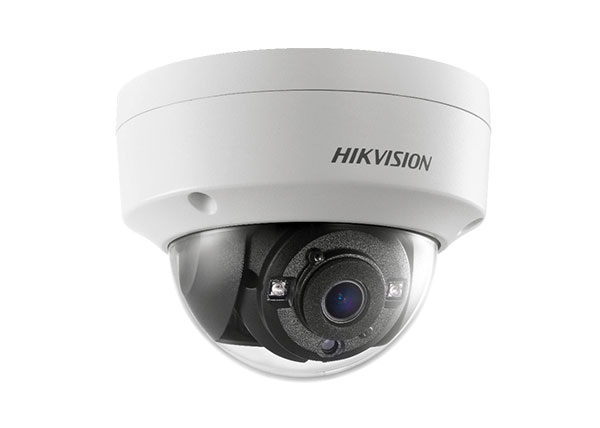

HIKVISION DS-2CE57U7T-VPITF 8mp TVI DOME 2.8mm

Camera

• Image Sensor8.29 MP CMOS
• Signal SystemPAL/NTSC
• Frame Rate

  TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps

  AHD: 8MP@12.5fps, 8MP@15fps

  CVI: 8MP@12.5fps, 8MP@15fps

  CVBS: P/N



• Resolution3840 (H) × 2160 (V)
• Min. Illumination0.003 Lux@(F1.2, AGC ON), 0 Lux with IR
• Shutter Time

  PAL: 1/12.5 s to 1/50,000 s

  NTSC: 1/15 s to 1/50,000 s



• Lens2.8 mm, 3.6 mm, 6 mm fixed lens
• Horizontal Field Of View102° (2.8 mm), 79° (3.6 mm), 51° (6 mm)
• Lens MountM16
• Day & NightICR
• WDR (Wide Dynamic Range)≥130 dB
• Angle AdjustmentPan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355°

Menu

• Image ModeSTD/HIGH-SAT
• AGCSupport
• Day/Night ModeAuto/Color/BW (Black and White)
• White BalanceAuto/Manual
• LanguageEnglish
• FunctionsBrightness, Sharpness, DNR , Mirror, Smart IR

Interface

• Video OutputSwitchable TVI/AHD/CVI/CVBS

General

• Operating Condition‘-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
• Power Supply

  12 VDC ± 25%

  *You are recommended to use one power adapter to supply the power for one camera.



• Power ConsumptionMax. 4.2 W
• Protection LevelIP67, IK10
• MaterialMetal
• IR RangeUp to 30 m
• CommunicationHIKVISION-C
• DimensionsΦ 111 mm × 82.4 mm (Φ 4.4" × 3.2")
• Approx. 480 g (1.06 lb.)
