The SmartLiving intrusion control panel
The SmartLiving control panel series covers a vast range of applications. SmartLiving505, SmartLiving515 and SmartLiving1050L encompass small domestic and commercial applications, whereas SmartLiving10100L can be fully tailored to suit more sizeable facilities.
The SmartLiving series: one philosophy embracing all solutions.

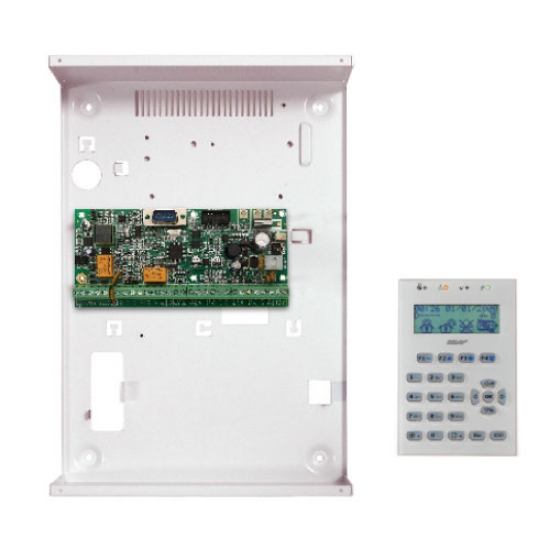

This model (Ness Part No 106-426) is the SmartLiving 505 system, with 4 Line LCD Keypad (nCode Keypad) in a secure metal enclosure. (Refer Ness part No 101-204 for the plug pack and battery kit, which is sold separately to this part No.)
The control panel versions
The control panel is the heart of the SmartLiving system.
Ness offers 4 versions, all in metal enclosures: SmartLiving505, SmartLiving515 with housing for a 7Ah battery, and SmartLiving1050L and SmartLiving10100L with housing for a 7 Ah up to an 18Ah battery. The vast application range of this system spans from just five terminals with this model ('505' version), to a hundred terminals with the '10100' version. All versions offer an amplitude of tantalising features.
Innovative BUS technologies
A particularly interesting feature is the new concept of 'terminals' attributable to FlexO technology. This concept revolutionizes the old fashion way of thinking with the static perspective of inputs and outputs and provides the installer with a more adaptable approach to system customization and what is more, a different perception of in-stock needs. Application of Easy4U technology provides installers and end-users alike with all the advantages of an uncomplicated yet effective interface. The innovative concept of 'shortcuts' makes system control effortless and greatly simplifies system programming, which is fully piloted by this straightforward interface. Ness's new-generation I-BUS is the backbone of the SmartLiving system. The I-BUS is capable of transmitting at an extremely high speed, unmatched in this market segment. The performance capabilities of the I-BUS have been utilized in such a way as to allow it to manage complex topologies, provide a fast-load-insensitive response and end-to-end noise immune voice transmissions, all without the need of any extra wiring. Thus, from this new-generation bus came VoIB technology for voice over bus transmissions. The I-BUS allows the SmartLiving system to grow in accordance with installation needs. The bus accepts proximity readers, keypads with graphic displays, input/output expansions, wireless transceivers, GSM diallers and new high-security sounder flashers. The SmartLiving system is capable of enrolling all the bus peripherals automatically, thus further smoothing the process of system installation and configuration. The I-BUS can be protected, sectioned and regenerated by means of the new IB100 bus isolators/regenerators.
System functions, features and options
The control panel can be enhanced with a SmartLogos Voice module. As a result of VoIB technology, this board provides a vast assortment of advanced voice functions which make the SmartLiving system a breakthrough product in the sector of intrusion control.
The matrix is the brain of the system and allows the correlation of the actions and events the system manages. Each of the system events can be associated with output actions, voice dialler actions and digital dialler actions.
The system can be accessed by user codes and proximity keys/cards. It is possible to associate each code/key/card with one of the Weekly Timers which can then be programmed to enable/ disable it at certain times of the day.
The smartLiving system can be configured as a 'hybrid' system in view of the fact that it is capable of managing both hardwired and 'Air2' wireless peripherals. This type of configuration allows it to integrate the new-generation wireless capabilities provided by the 'Air2' two-way transceiver.
The excellence of connection flexibility offered by the SmartLiving system is yet another of its strong points. The system offers an all-set-to-go Voice dialler (with the optional SmartLogo's module) and a likewise friendly Digital dialler that readily satisfies all the requirements of alarm receiving centres.
The SmartLiving system can also be accessed and controlled over-the-phone (PSTN) via the SmartModem100. Additionally, if you wish to provide the system with an alternative communication channel over the GSM network, simply install Nexus. This innovative GSM device manages voice and digital communications, receives SMS commands and sends programmable SMS messages when specific events occur.
The SmartLAN/SI and SmartLAN/G boards offer a level of connection flexibility which is unparalleled. These boards provide TCP/IP connectivity and allow the intrusion control panel to send e-mails and attachments (SmartLan/G Module). They allow end users/operators to access the system via the Internet and provide a web-server function. The latter allows end users/operators to connect to the control panel from any PC and verify the status of the system and interact with it. The web-server, embedded in the SmartLAN/G, also allows users/operators to use their Smartphones as SmartLiving wireless keypads, both inside the protected premises, via WiFi, or from any part of the world over GPRS or the Internet.
The control panel can be programmed from any LCD keypad or via a PC running SmartLeague software. Programming from an LCD keypad is quick and easy, as it is possible to use the default settings which completely eliminate the need to configure the parameters of the Voice dialler and Digital dialler. This programming method is very straightforward, as the operator is guided through the process by means of explicit graphics and easily understandable visual instructions. Configuring the system from a PC is totally trouble-free, as it is mainly a series of cut-and-paste and drag-and-drop operations which reduce the operators work to a minimum. SmartLeague software provides an innovative Text-to-speech function which allows operators to create voice messages by merely typing-in the relative text. This function eliminates all the difficulties attached to normal voice recording. The high-speed RS232 port reduces local on-site programming to a split-second task.
Supplied With
