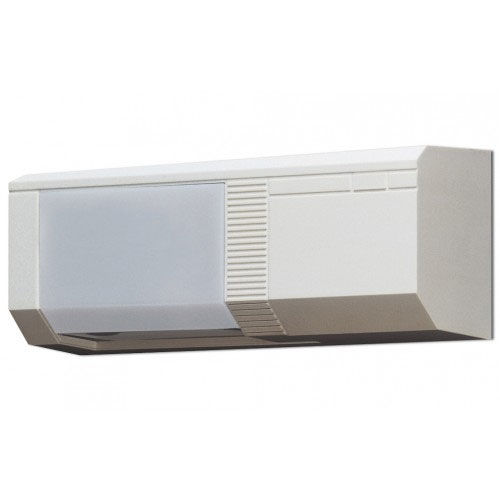

Takex PS-520E Request-To-Exit PIR

Request-to-Exit PIR

SKU: 106-214

Overview
Features
Specifications

REX sensor with selectable pattern width, 1.2m (single door) or 2.4m (double door).

Designed for applications involving coverage at the threshold of a doorway, the PS-520E uses passive infrared technology to detect the differential between a human body and the floor. It features several field selectable options and adjustments to make it the ideal choice for access control applications, door strike release, alarm system shunting and automatic door operation.

Mirror optics
Mounts up to 4m high
12/24vac or 12/24vdc input
2 x form C relays. Fail-safe or Fail secure selectable
Adjustable sensitivity
Adjustable timer 0.25 to 60 seconds
Adjustable Coverage Area
Overhead or Wall-mount capability
Dual Pyro for increased stability against external light
High immunity to RFI and other electrical noise
Suitable for Single or Double doors
Two "Heavy-Duty" Relay Outputs (up to 1A) for controlling Door Strikes and Magnetic Locks
Fail-Safe/Fail Secure (selectable)
Compact Design

Model	PS-520E
Product type	Request-to-Exit Door Sensor
Detection system	Passive Infrared
Detection area	Mounting height: 4m (13ft) max. Pattern: Single Door/Double Door (selectable) Adjustment: 8 steps (wall mount) / 5 steps (overhead mount) Sensitivity: adjustable
Power supply	12-24VDC (non polarity) or 12-24VAC (50Hz/60Hz) (when operated at AC20-24V, connect attached resistor)
Power consumption	40mA or less/DC 70mA or less/AC
Output	Dry contact relay 2c Operation: one shot Hold time: approx 0.25sec to 60sec (adjustable) Contact capacity: 30V(DC) 1A or less/125V (AC) 0.6A or less *selectable relay operation
LED	Green Operation: synchronous dry contact relay (LED disabled)
Wiring connection	Terminals
Ambient temperature range	-10°C to +50°C (+14°F to +122°F)
Mounting position	Wall, ceiling, on or under frame (indoor)
Weight	170g (5.95oz)
Appearance	Cover: ABS resin Window: PE resin
Accessories	Tapping screw: 2pcs Resistor (82Ω, 3W): 1pc (connect when operated at AC20-24V) Cover locking screw: 1pc

REX sensor with selectable pattern width, 1.2m (single door) or 2.4m (double door).
