Manufacturer: Ness Corporation

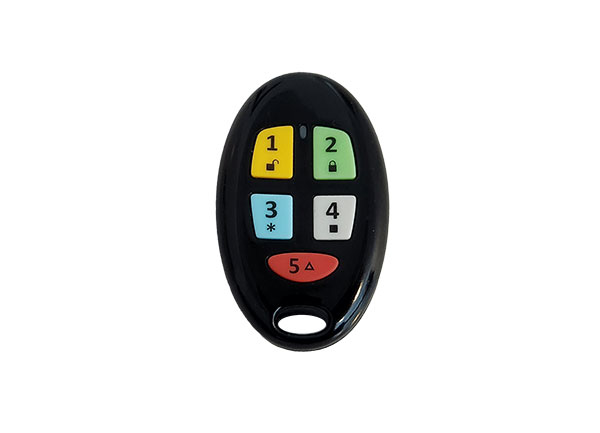

Ness RK5 TWR 5 Button Radio Key

NESS RK5 TWR 5 BUTTON RADIO KEY
SKU: 106-110

The Ness RK5 Two Way Radio Key is a versatile and compact fully waterproof Radio Key with 5 buttons programmable to ELK and NESS Two Way Radio interfaces.

  • 5 Colour-coded buttons
  • 915-927MHz operation with 20 frequency hopping channels for enhanced security
  • Dual colour LED display for radio acknowledgment, low battery, armed and alarm state.
  • Battery voltage and low battery reporting to compatible devices.
  • CR2032 3V Lithium supplied (replaceable)

Compatible with:
101-292 Ness M1 TWR wireless transceiver
106-304 Ness TWR-SCR standalone transceiver
106-462 Ness X-TWR Interface for D8/D16

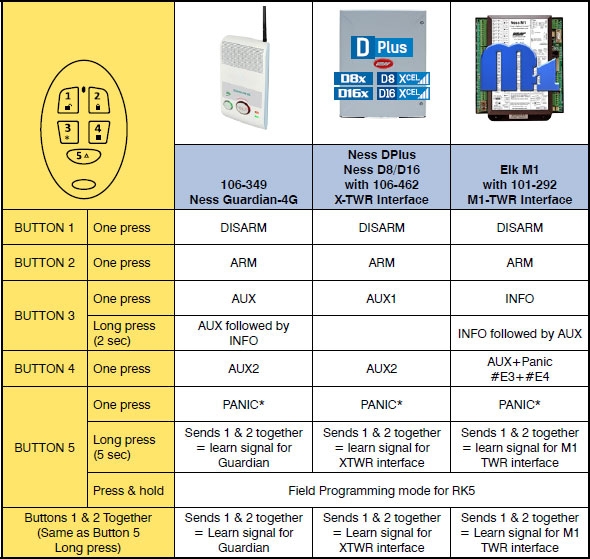

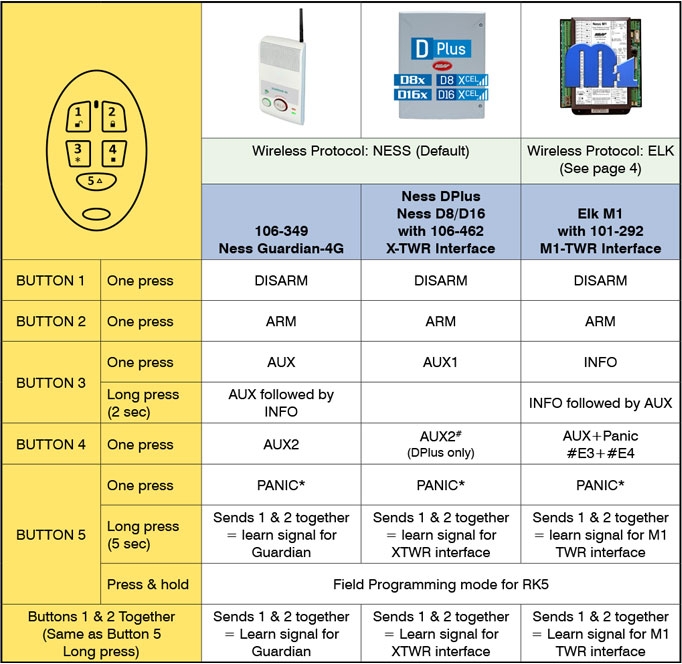

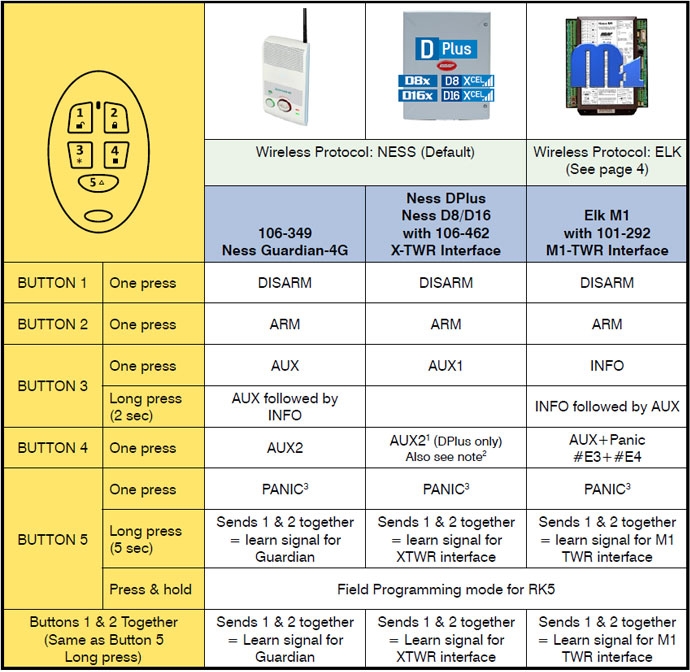

RK5 ButtonNess Guardian-4GNess D8/D16
with TWR Interface
Ness DPlus
with TWR Interface
Elk M1
with TWR Interface
1DisarmDisarmDisarmDisarm
2ArmArmArmArm
3ProgrammableProgrammable*Programmable*Aux/Info
4ProgrammableProgrammable*Programmable*[No function]
5Panic/Medical/DuressPanic/Medical/DuressPanic/Medical/Duress
or AUX1, AUX3 output Programmable*
Panic/Medical/Duress

* D8/D16 & DPlus functions are determined by the control panel firmware and configuration of AUX outputs. Refer to the control panel installation manual and conduct tests to satisfy your requirements prior to installation.

Datasheet

The Ness RK5 Two Way Radio Key is a versatile and compact fully waterproof Radio Key with 5 buttons programmable to ELK and NESS Two Way Radio interfaces.

  • 5 Colour-coded buttons
  • 915-927MHz operation with 20 frequency hopping channels for enhanced security
  • Dual colour LED display for radio acknowledgment, low battery, armed and alarm state.
  • Battery voltage and low battery reporting to compatible devices.
  • CR2032 3V Lithium supplied (replaceable)

Compatible with:
101-292 Ness M1 TWR wireless transceiver
106-304 Ness TWR-SCR standalone transceiver
106-462 Ness X-TWR Interface for D8/D16



RK5 ButtonNess Guardian-4GNess D8/D16
with TWR Interface
Ness DPlus
with TWR Interface
Elk M1
with TWR Interface
1DisarmDisarmDisarmDisarm
2ArmArmArmArm
3ProgrammableProgrammable*Programmable*Aux/Info
4ProgrammableProgrammable*Programmable*[No function]
5Panic/Medical/DuressPanic/Medical/DuressPanic/Medical/Duress
or AUX1, AUX3 output Programmable*
Panic/Medical/Duress

* D8/D16 & DPlus functions are determined by the control panel firmware and configuration of AUX outputs. Refer to the control panel installation manual and conduct tests to satisfy your requirements prior to installation.
