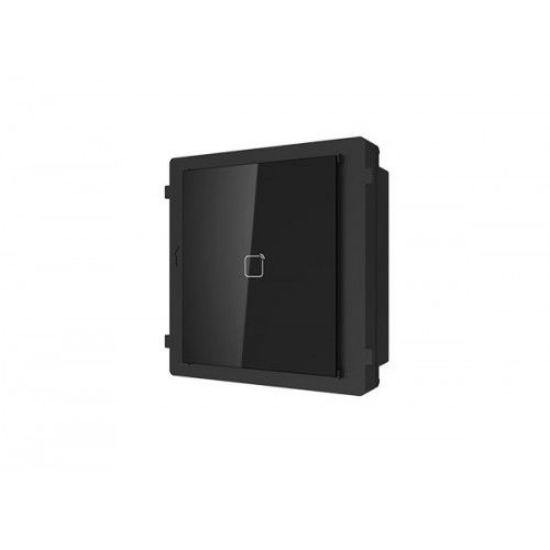

Picture of HIK DS-KD-M Mifare Card Reader Module
Manufacturer: Hikvision

HIK DS-KD-M Mifare Card Reader Module

IP Intercom Mifare Card Reader Module
SKU: 104-928MR

Hikvision DS-KD-M Video Intercom Mifare Card Reader Modular Video connects to the DS-KD8003-IME1 Door Station units via the supplied RS485 leads and provides a Proximity Card Reading to the system. Card Reading allows unlocking of the door via Mifare Access Card.

KD8 Series Pro Modular Door Station

  • Modular door station Mifare 1 card reader module, 13.56MHz, needs mounting accessories
  • Backlight compensation, IP65
  • Unlock door via prox card, Supports issuing cards
  • Easy to extend

System Parameters
Internal card reader:Built-in Card Reader
Processor:Embedded MCU Processor
Device Interfaces
Module-connecting:2(1 Input, 1 Output)
General
Card type:Mifare Card
Power output:12VDC(Powered for the other module)
Power input:12VDC(Powered by the other module)
DIP switch:8
Installation:Flush Mounting, Surface Mounting
Power Consumption:≤2W
Working Humidity:10% to 95%
Working Temperature:-40° C to +60° C (-40° F to 140° F)
IP Protection Level:IP65
Dimensions(L × W × H):98.5mm×100mm×33.7mm(3.87"×3.95"×1.33")

Brochure

Hikvision DS-KD-M Video Intercom Mifare Card Reader Modular Video connects to the DS-KD8003-IME1 Door Station units via the supplied RS485 leads and provides a Proximity Card Reading to the system. Card Reading allows unlocking of the door via Mifare Access Card.

KD8 Series Pro Modular Door Station

  • Modular door station Mifare 1 card reader module, 13.56MHz, needs mounting accessories
  • Backlight compensation, IP65
  • Unlock door via prox card, Supports issuing cards
  • Easy to extend
