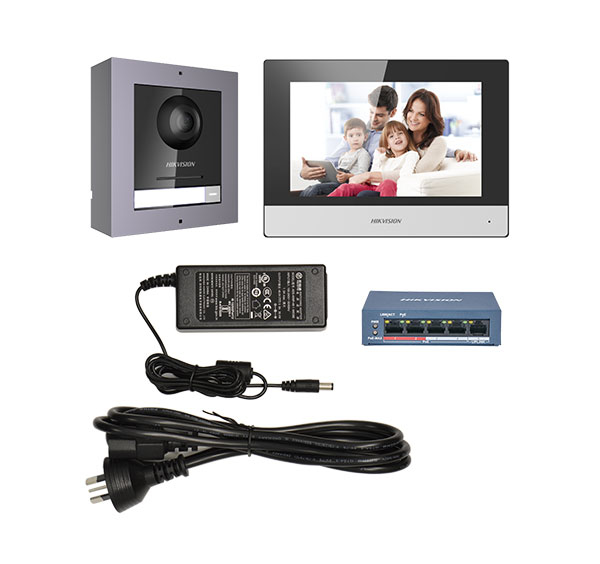

Hikvision DS-KIS602(B) IP Video Intercom Kit

System Parameters

• ProcessorEmbedded MCU Processor
• Operation SystemEmbedded Linux Operation System

Display Parameters

• Display Resolution1024 × 600
• Display Screen7-inch colorful IPS LCD

Audio Parameters

• Audio Compression Rate64 Kbps
• Audio Compression StandardG.711 U
• Audio InputBuilt-in omnidirectional microphone
• Audio OutputBuilt-in loudspeaker
• Audio QualityNoise suppression and echo cancellation

Network Parameters

• Ethernet10/100 Mbps Self-Adaptive Ethernet
• Network ProtocolTCP/IP, RTSP

Device Interfaces

• I/O Input4
• I/O Output2

General

• Power Supply12 VDC/PoE ( IEEE 802.3af)
• Power Consumption≤10 W
• Working Temperature-40° C to +60° C (-40° F to 140° F)
• Working Humidity10% to 95%
• Dimension (L X W X D)200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6")

• 683 g (with packaging)

  355 g (without packaging)

• IP Protection LevelIP65
• Memory128 MB
• Dimensions(L × W × H)98 mm × 99.8 mm × 43.9 mm (3.86" × 3.93" × 1.73")
