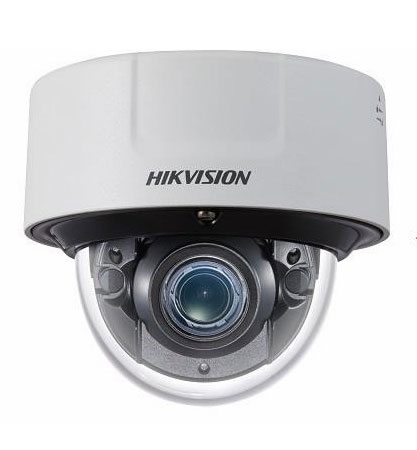

HIKVISION DS-2CD5185G0-IZS

Camera

• Image Sensor1/1.8″ Progressive Scan CMOS
• Min. IlluminationColor: 0.007 Lux @ (F1.2, AGC ON),0 Lux with IR
• Shutter Speed1 s to 1/100,000 s
• Slow ShutterYes
• Wide Dynamic Range120 dB
• Day & NightIR Cut Filter
• Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Lens

• FocusAuto, semi-auto, manual
• Lens Type2.8 to 12 mm
• FOV2.8 to 12 mm, horizontal FOV 112.4° to 41°, vertical FOV 58° to 23°, diagonal FOV 137° to 47°
• ApertureF1.2
• Lens MountIntegrated

Illuminator

• IR RangeUp to 30 m
• Wavelength850 nm

Video

• Max. Resolution3840 × 2160
• Main Stream50Hz: 25fps (3840 × 2160, 3200 × 1800, 2560 × 1440, 1920 × 1080, 1080 × 720),60Hz: 30fps (3840 × 2160, 3200 × 1800, 2560 × 1440, 1920 × 1080, 1080 × 720)
• Sub-Stream50Hz: 25fps (704 × 576, 640 × 480),60Hz: 30fps (704 × 480, 640 × 480)
• Third Stream50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480),60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
• Fourth Stream50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480),60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
• Fifth Stream50Hz: 25fps (704 × 576, 640 × 480),60Hz: 30fps (704 × 480, 640 × 480)
• Custom Stream50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480),60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
• Video CompressionMain stream: H.265/H.264/H.265+/H.264+,Sub stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG
• Video Bit Rate32 Kbps to 16 Mbps
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• H.264+Main stream support
• H.265+Main stream support
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Region Of Interest (ROI)4 fixed regions for main stream, sub stream, third stream, fourth stream, and fifth stream, and dynamic face tracking

Audio

• Environment Noise FilteringYes
• Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
• Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)

Network

• Simultaneous Live ViewUp to 20 channels
• APIONVIF (PROFILE S, PROFILE G), ISAPI, SDK
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
• User/HostUp to 32 users. 3 user levels: administrator, operator and user
• SecurityPassword protection, HTTPS encryption, IEEE 802.1x port-based network access control, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF
• Network StoragemicroSD/SDHC/SDXC card (up to 256 GB), local storage and NAS (NFS,SMB/CIFS), ANR
• ClientiVMS-4200, Hik-Connect, iVMS-5200, Hik-Central
• Web BrowserPlug-in required live view: IE8-11, Chrome 41-44, Mozilla Firefox30.0-51, Safari8.0+,Plug-in free live view: Chrome 45+, Mozilla Firefox52+
• Alarm TriggerMotion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error


• Day/Night SwitchAuto/Schedule/Day/Night/Triggered by Alarm In
• Target CroppingYes
• DNR3D DNR
• Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
• Image EnhancementBLC, HLC, Defog, EIS
• Image SettingsRotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser

Interface

• Audio1-ch 3.5 mm input (line in), 1-ch 3.5mm output, mono
• Alarm1-ch input, 1-ch output (up to 24 VDC 1A or 110 VAC 500 mA)
• Video Output1Vp-p composite output (75 Ω/CVBS)
• On-Board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB
• Hardware ResetYes
• Communication Interface1 RJ45 10M/100M/1000M Ethernet port,1 RS-485 interface ( half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
• Power Output12 VDC, max. 200mA (supported by 12 VDC, 24 VAC and PoE)

Event

• Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
• CountingCounting
• Face DetectionYes
• Exception DetectionScene change detection, audio exception detection, defocus detection

General

• Firmware Version5.5.80
• General FunctionOne-key reset, anti-flicker, five streams, custom streams, heartbeat, password protection, privacy mask, watermark, IP address filter
• Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
• Power SupplyRecommended DC input 12 V, voltage range of 10 to 48 VDC allowed, two-core terminal block,PoE (802.3af, class 3)
• Power Consumption And CurrentWith extra load: 12 VDC, 0.8 A, max. 10.5 W; PoE (802.3af, 36 V to 57 V), 0.2 A to 0.3 A, class 3,Without extra load: 12 VDC, 0.6 A, max. 8 W; PoE (802.3af, 36 V to 57 V), 0.2 A to 0.3 A, class 3,“with extra load” means that an extra device is connected to and powered by the camera.
• Camera DimensionCamera: Φ140.5 × 122.6 mm (Φ5.5″ × 4.8″),With package: 244 × 174 × 173 mm (9.6″ × 6.9″ × 6.8″)
• Camera WeightCamera: 900 g (1.98 lb.),With package: 1250 g (2.76 lb.)

Approval

• EMC

  IC: IC-VoC(ICES-003 Issue 7:2020),

  FCC: FCC-SDoC(ANSI C63.4,FCC Part15 sub B),

  KC: KN 301489-1,KN 301489-17,RRA NOTICE 2017-14(2017.12.05),RRA NOTICE 2017-19(2017.12.28),

  CE: CE-EMC(EN 50130-4:2011+A1:2014,EN 55032:2015,EN 61000-3-2:2014,EN 61000-3-3:2013),

  RCM: AS/NZS 60950.1:2003 + Am1, Am2 and Am3,AS/NZS CISPR 32:2015

• Safety

  CB: IEC 60950-1,

  UL: UL 60950-1:2014,CAN/CSA C22.2 No. 60950-1-07:2014,

  LOA: SANS IEC60950-1,

  BIS: IS 13252(Part 1)2010+A1:2013+A2:2015

• Environment

  CE: CE-RoHS(RoHS Directive 2011/65/EU+2015/863)

  REACH SVHC: Regulation (EC) No 1907/2006

• ProtectionIK10
