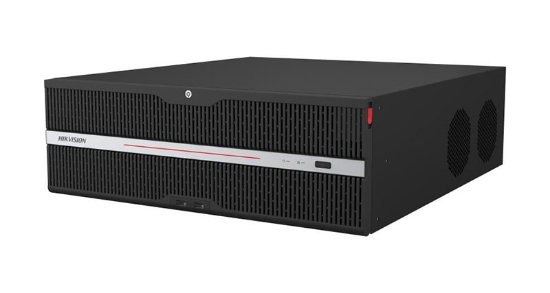

Hikvision DS-96128NXI-S16R 128ch Acusense NVR no HDD

Available by order

SKU: 104-234B

Overview
SPECIFICATIONS
DOWNLOADS

S Series NVR with AcuSense

Up to 32×1080p decoding capacity
H.265+/H.265/H.264+/H.264 video formats
Up to 128-ch IP cameras can be connected
Intelligent analytics supports facial recognition, perimeter protection, video structuralization, AcuSearch
Up to 8-ch IP speakers can be connected
Supports RAID 0, 1, 5, 6, 10 and N+M hot spare for even more reliable data storage, effectively avoids data loss risks
HDMI video output at up to 8K resolution
Redundant power supply
Hard drives sold separately

Intelligent Analytics
AI by NVRFacial recognition, perimeter protection, video structuralization
AI by CameraFacial recognition, perimeter protection, video structuralization, AcuSearch, motion detection2.0, ANPR, people counting, VCA

Facial Recognition
Facial Detection and AnalyticsFace picture comparison, human face capture, face picture search
Face Picture LibraryUp to 64 face picture libraries, up to 300,000 face pictures in list library (each picture ≤ 4 MB, total capacity ≤ 10 GB)
Face Picture Comparison (Captured from Camera)
16-ch
Comparison speed: 24 pictures per second
Facial Detection and Analytics Performance
Simultaneous mode: 8-ch, up to 2 MP
independent mode: 4-ch, up to 2 MP.

AcuSearch
By Camera
All channels , up to 345,600 targets per day
Note: The camera should enable AcuSearch function.

Perimeter Protection
By NVR
Simultaneous mode: 8-ch, up to 2 MP
independent mode: 4-ch, up to 2 MP.
By CameraAll channels

Video Structuralization
Structured Analysis
Simultaneous mode: 8-ch, up to 2 MP
independent mode: 4-ch, up to 2 MP.
Face Picture LibraryUp to 64 face picture libraries, up to 300,000 face pictures in list library (each picture ≤ 4 MB, total capacity ≤ 10 GB)
Face Picture Comparison
16-ch;
Comparison speed: 24 pictures per second

Video and Audio
IP Video Input
128-ch
Up to 32 MP resolution
Incoming Bandwidth1280Mbps
Outgoing Bandwidth1024Mbps
Incoming Bandwidth (RAID Mode)640Mbps
Outgoing Bandwidth (RAID mode)512Mbps
HDMI 1 Output4K (4096 × 2160)/30 Hz, 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1080P (1920 × 1080)/60 Hz
HDMI 2 Output4K (4096 × 2160)/30 Hz, 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1080P (1920 × 1080)/60 Hz
HDMI 3 Output8K (7680 × 4320)/30 Hz, 4K (4096 × 2160)/30 Hz, 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1080P (1920 × 1080)/60 Hz
HDMI 4 Output1080P (1920 × 1080)/60 Hz
VGA 1 Output1080P (1920 × 1080)/60 Hz
VGA 2 Output1080P (1920 × 1080)/60 Hz
Video Output Mode
Mode 1 (default output mode): simultaneous output with 1080p resolution;
Mode 2 (simultaneous output): HDMI 1, VGA 1, HDMI 2, VGA 2, HDMI 3, and HDMI 4 provide simultaneous output, the maximum resolution for VGA 1/VGA 2/HDMI 4 is 1080p, the maximum resolution for HDMI 1/HDMI 2/HDMI 3 is 4K;
Mode 3 (independent output and 8K HDMI 3 output resolution): HDMI 1/VGA 1/HDMI 2/VGA 2, HDMI 3, and HDMI 4 provide independent output respectively. The maximum resolution is 8K + 4K + 1080p;
Mode 4 (independent output and HDMI 3 output resolution ≤ 4K): HDMI 1/VGA 1, HDMI 2/VGA 2, HDMI 3, and HDMI 4 provide independent output respectively. The maximum resolution is 8K × 4K + 1080p.
HDMI Input1-ch
HDMI Loopback1-ch (matching the HDMI input)
Audio Output2-ch, RCA (Linear, 1 KΩ)
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)

Decoding
Decoding FormatH.265/H.265+/H.264/H.264+
Decoding Capability2-ch@32 MP (30 fps)/2-ch@24 MP (30fps)/4-ch@16 MP (30fps)/8-ch@8 MP (30fps)/16-ch@4 MP (30fps)/32-ch@2 MP (30fps)
Synchronous Playback16-ch
Recording Resolution32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF

Network
Remote Connection256
Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF (version 2.2), OTAP
APIONVIF (profile S/T); SDK; ISAPI
Compatible BrowserIE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
Network Interface4, RJ-45 10/100/1000/2500 Mbps self-adaptive Ethernet interface
Camera Access ProtocolONVIF (version 2.5), RTSP

RAID
RAID TypeRAID 0, RAID 1, RAID 5, RAID 6, RAID 10

Auxiliary Interface
SATA16 SATA interfaces; 3.5-inch HDD
eSATA1 eSATA interface
CapacityUp to 20 TB capacity for each HDD
Serial Interface1 RS-232, 2 RS-485 (half-duplex)
USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 4 × USB 3.0
Alarm In/Out32/16

General
GUI LanguageEnglish, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian
Power Supply100 to 240 VAC, 50 to 60 Hz, redundant power supply
Consumption≤ 100 W (without HDD)
Working Temperature-10 to 55°C (14 to 131° F)
Working Humidity10 to 90%
Dimension (W × D × H)442 mm × 497 mm × 146 mm (17.4 × 19.5 × 5.7 inch)
≤ 12 kg (without HDD, 28.7 lb.)

Certification
Obtained CertificationCE, IC, CB, Rohs, Reach, WEEE, RCM, UKCA, LOA
CE
EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201
9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020
