Manufacturer: Hikvision

HIKVISION DS-KH2220 4 WIRE ROOM STATION

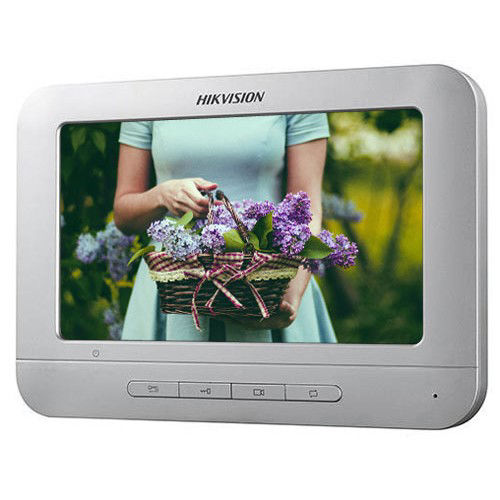

Hikvision DS-KH2220 - 7" LCD Indoor Station

SKU: 104-104

Hikvision DS-KH2220 - 7“ Screen LCD Indoor Station

Additional DS-KH2220 - 7“ Screen LCD Indoor Station to add to the Hikvision DS-KIS203 Analogue Intercom Kit. (104-102)

Up to 3 Room stations can be installed per system.

ROOM STATION

Requires 12VDC 1.5 Amp Power Supply (Refer Ness Part No. POW310) sold separately.

Display Parameters
Display Screen:	7-Inch Colorful TFT LCD
Display Resolution:	800 × 480
Operation Method:	Physical Button
Audio Parameters
Audio Input:	Built-in Omnidirectional Microphone
Audio Output:	Built-in Loudspeaker
Audio Quality:	Noise Suppression and Echo Cancellation
Device Interfaces
Four-wire Interface:	4 Four-Wire Interfaces (1-ch Video-Input, 1-ch Audio Input/Output, 1-ch Power Supply, 1-ch Grounding in 1 Four-Wire Interface)
General
Power Supply:	12 VDC (Sold separately (Refer Ness Part No. POW310)
Power Consumption:	≤5 W
Working Temperature:	-10° C to + 55° C (14° F to 131° F)
Working Humidity:	10% to 90%
Dimensions(L × W × H):	195.8 mm × 132.8 mm × 18.39 mm (7.7" × 5.2" ×0.7")

Hikvision DS-KH2220 - 7“ Screen LCD Indoor Station

Additional DS-KH2220 - 7“ Screen LCD Indoor Station to add to the Hikvision DS-KIS203 Analogue Intercom Kit. (104-102)

Up to 3 Room stations can be installed per system.

ROOM STATION

Requires 12VDC 1.5 Amp Power Supply (Refer Ness Part No. POW310) sold separately.
