Manufacturer: Ness Corporation

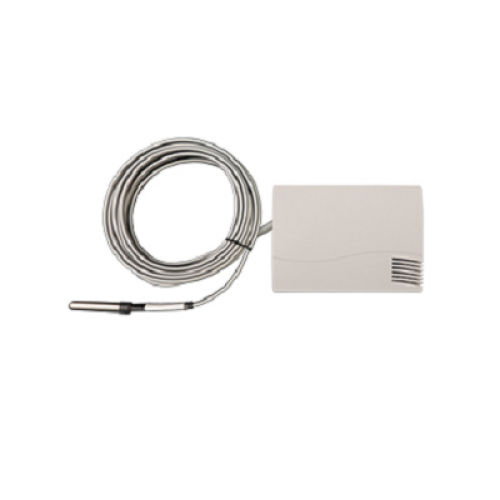

M1-ZTSR V2 ZONE TEMPERATURE PROBE & INTERFACE & 2m LEAD

Monitor remote temperatures with this add-on

SKU: 101-230B

Overview
Features
Specifications
Downloads

Monitor temperatures on any main zone on the Ness M1 Panel (Zone 1-16), with this add-on remote sensor.

The range is -45 Deg C to +60 Deg C. Applications include: freeze monitoring, second homes, agricultural uses, etc. The temperature may be accessed from the keypad, telephone remote control, App or M1 Programming rules.

Measures Temperature from: -45 Deg C to +60 Deg C
Communicates to M1 Control Over 3 Wires
Operates On Any Main Board Zone (1-16)
Up to 16 Interfaces Allowed per M1 Control
Interface May be Placed Up To 300 meters From M1
Suitable for Indoor/Outdoor Use in a Covered Environment
Includes 1.2m Remote Probe

Operating Voltage: 12 Volts D.C.
Current Draw: 10mA
Housing Dimensions:60mm x 32mm x 25mm

Monitor temperatures on any main zone on the Ness M1 Panel (Zone 1-16), with this add-on remote sensor.
